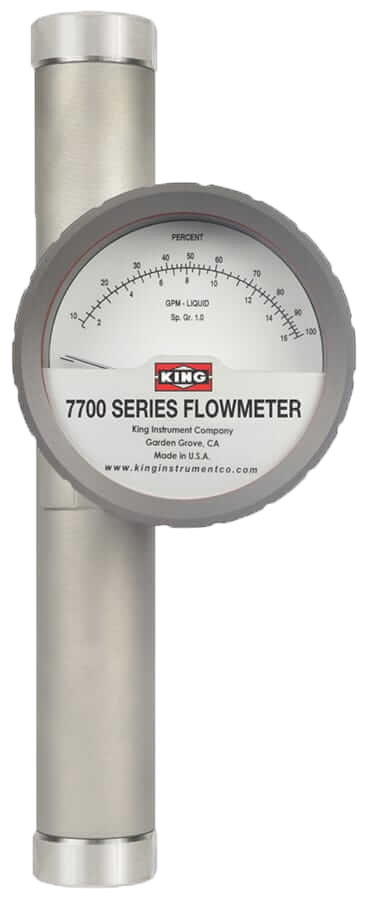

7710 Series Stainless Steel Tube Flowmeter

Brand: King Instrument Company
Add Product to My Catalog

This all 316L stainless steel meter utilizes a float and tapered tube design which offers longer, more linear scales, better pointer stability and 40% greater accuracy than competitively priced products.

A 4-20mA transmitter option adds to its versatility.
Features
  • Accuracy, Versatility and Value
  • All 316L Stainless Steel Construction
  • Magnetically Coupled Dial Type Display; 120mm Dual Scale
  • Available 4-20mA Output, NPT or Flange Connections
  • 0.55 - 450 GPM Water; 4 – 100 SCFM Air

1 - 12 of 784 Part Numbers
771-1-2-1-0-706
771-1-2-1-0-706
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 33 GPH
771-1-2-1-0-707
771-1-2-1-0-707
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 4 SCFM
771-1-2-1-0-708
771-1-2-1-0-708
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 1.1 GPM
771-1-2-1-0-709
771-1-2-1-0-709
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 8.0 SCFM
771-1-2-1-0-710
771-1-2-1-0-710
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 2 GPM
771-1-2-1-0-711
771-1-2-1-0-711
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 16.5 SCFM
771-1-2-1-0-712
771-1-2-1-0-712
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 4 GPM
771-1-2-1-0-713
771-1-2-1-0-713
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 24 SCFM
771-1-2-1-0-714
771-1-2-1-0-714
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 6 GPM
771-1-2-1-0-715
771-1-2-1-0-715
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 20 SCFM
771-1-2-1-0-716
771-1-2-1-0-716
  • Media Type - Water
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Water Flow - 5 GPM
771-1-2-1-0-717
771-1-2-1-0-717
  • Media Type - Air
  • Connection Type - FNPT Connections
  • Float Material - 316L SS
  • O-Ring Material - EPR
  • Alarm/Transmitter - None
  • Air Flow - 42 SCFM
1 - 12 of 784 Part Numbers

View_Details

Specifications

Brand

Metering Tube

  • 316L SS

Internal Components

  • 316L SS

Fitting Material

  • 316L SS

Inlet/Outlet Fittings

  • 316L SS NPT or flange, vertical

O-Ring

  • Viton®
  • Buna N
  • EPR
  • Kalrez®

Capacities

  • Water: 33 GPH to 450 GPM
  • Air: 4 to 100 SCFM

Scale

  • 120 mm direct reading, detachable

Accuracy

  • ± 3% of full scale flow

Turndown

  • 10:1

Repeatability

  • 1%

Maximum Temperature

  • EPR: 225 °F
  • Buna-N: 275 °F
  • Viton®: 350 °F
  • Kalrez®: 400 °F

Maximum Pressure @ 300 °F

  • 150#: 200 PSI
  • 300#: 540 psi
  • 600#: 1100 psi
