Features
  • Capacity: 0.5 t ~ 7.5 t
  • Stainless steel material, welded sealing, oil-proof, water-proof, anti-corrosion

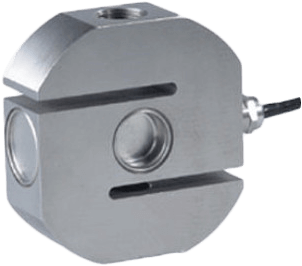

  • S type compression tension measurement, easy installation
  • Explosive-proof, suitable for bad conditions & dangerous work sites

Specifications

Capacity

  • 0.5 - 7.5 ton

Output

  • 2 ± 0.004 mV/V

Combined Error

  • 0.02 % Full Scale (Option: OIML C3)

Non-Linearity

  • ± 0.02 % Full Scale

Hysteresis

  • ± 0.02 % Full Scale

Repeatability

  • ± 0.01 % Full Scale

Creep

  • ± 0.012 % Full Scale/30 min

Zero Unbalance

  • 1.5 % Full Scale

Excitation Voltage

  • 5 Vdc ~ 12 Vdc

Operating Temperature Range

  • -35 ~ +65° C

Compensated Temperature Range

  • -10° ~ +40° C

Temperature Coefficient of Zero

  • 0.010 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.009 % Full Scale/10° C

Input Resistance

  • 360 ± 10 Ω

Output Resistance

  • 350 ± 10 Ω

Insulation Resistance

  • ≥ 5000 MΩ @ 50 Vdc

Safe Load

  • 120 % Full Scale

Ultimate Overload

  • 150 % Full Scale

Protection

  • IP68

Electrical Resistance

  • 4-core Shielded Cable, Diameter: 5.7 mm, Length: 3 m (0.5 t), 6 m (1 t - 7.5 t)
