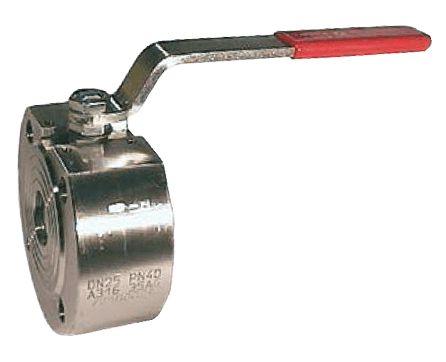

Kobold Manual Flanged Ball Valve, KUG-VK

KUG-VK Manual Flanged Ball Valve

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Kobold Manual Flanged Ball Valve, KUG-VK
Design
One-piece compact construction with full-bore, mounting pad for actuator as per ISO 5211.

Technical Details
  • Connection: Flanges as per DIN 2533 DN 15 to DN 200
  • Temperature Range: -30° to 160° C (-22° to 320° F)
  • Nominal Pressure: PN 16 (232.1 psi, 1,600 kPa, 16 bar) dimensioned and with Threaded Holes, to 80° C (176° F)
  • Operation: 90° Rotation of the Handle (Handle is Reversible through 180°)

1 - 11 of 11 Part Numbers
KUG-VKF 15
KUG-VKF 15
  • Flange Size - DN 15 (NPS 1/2")
KUG-VKF 1F
KUG-VKF 1F
  • Flange Size - DN 150 (NPS 6")
KUG-VKF 1H
KUG-VKF 1H
  • Flange Size - DN 100 (NPS 4")
KUG-VKF 20
KUG-VKF 20
  • Flange Size - DN 20 (NPS 3/4")
KUG-VKF 25
KUG-VKF 25
  • Flange Size - DN 25 (NPS 1")
KUG-VKF 2H
KUG-VKF 2H
  • Flange Size - DN 200 (NPS 8")
KUG-VKF 32
KUG-VKF 32
  • Flange Size - DN 32 (NPS 1-1/2")
KUG-VKF 40
KUG-VKF 40
  • Flange Size - DN 40 (NPS 1-1/2")
KUG-VKF 50
KUG-VKF 50
  • Flange Size - DN 50 (NPS 2")
KUG-VKF 65
KUG-VKF 65
  • Flange Size - DN 65 (NPS 2-1/2")
KUG-VKF 80
KUG-VKF 80
  • Flange Size - DN 80 (NPS 3")
1 - 11 of 11 Part Numbers

View_Details

Specifications

Brand

Ball Gasket Material

  • PTFE Glass-Fiber Reinforced

Ball Material

  • 316L Stainless Steel

Enclosure, Body Material

  • 316 Stainless Steel
  • 316L Stainless Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - PN 16

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - PN 16

Flange Size - 1” (DN 25)

  • 1” (DN 25) - PN 16

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - PN 16

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - PN 16

Flange Size - 2” (DN 50)

  • 2” (DN 50) - PN 16

Flange Size - 3” (DN 80)

  • 3” (DN 80) - PN 16

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - PN 16

Flange Size - 4” (DN 100)

  • 4” (DN 100) - PN 16

Flange Size - 6” (DN 150)

  • 6” (DN 150) - PN 16

Flange Size - 8” (DN 200)

  • 8” (DN 200) - PN 16

Handle Assembly Material

  • Steel, Zinc Coated (DN 15 to 100), Steel Coated (DN 150 to 200), Plastic Sheathed

Maximum System Pressure

  • PN 16 (232.1 psi, 1,600 kPa) Dimensioned & with Threaded Holes, to 80° C (176° F)

Operation

  • 90° Rotation of the Handle (Handle is Reversible through 180°)

Port

  • Full

Spindle Gasket Material

  • FKM
  • PTFE

Temperature Range

  • -30°  to 160° C (-22° to 320° F)

Valve Type

  • Manual
