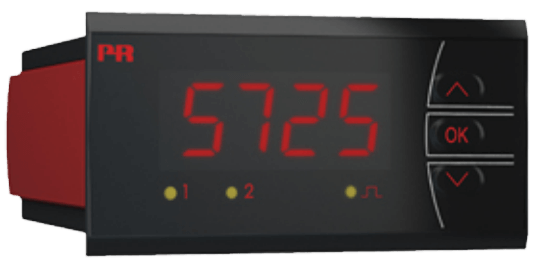

5725 Programmable Frequency Indicator
Brand: PR Electronics
- Measures NPN, PNP, Contact, NAMUR, S0, Tacho and TTL sensors
- Programmable frequency input span of 0.001 Hz to 50 kHz
- The 5725D has two SPDT relays and one analog output
- Easy to read 4-digit, 14-segment LED display with scrolling help text
- Universally powered by 21.6…253 VAC or 19.2… 300 VDC
- 4-digit display with 13.8 mm high, 14-segment LED digits and adjustable decimal point.
- Indicator is scalable from -1999 to 9999.
- Scrolling help text makes programming easy.
- Customizable trigger levels allow measurement of nearly any pulse sensor.
- Built-in excitation source for measuring NPN, PNP, NAMUR and S0 sensors.
- Fast response time of 1 cycle + 100 ms, and excellent accuracy of better than 0.05% of selected range.
- The analog output current on the 5725D can be dampened from 0.1 to 60 seconds, and can handle up to 800 Ohms loop load.
- The 5725 meets NAMUR NE21 recommendations for high performance in harsh EMC environments.
- High 2.3 kVAC galvanic isolation, and an excellent signal/noise ratio of > 60dB.
Specifications
Brand
Accuracy
- Better than 0.05 % of Selected Range
Approvals & Certifications
- CE
- DNV Marine Standard F. Certificate No. 2.4
- EAC TR CU 020/2011
- IEC 60068-2-6: 2007
- UL 508
Consumption
- 500 VA - Max.
Delay Time
- 0 to 3600 seconds - on & Off Delay
- 0 to 60 seconds - Power On Delay
Dimensions
- 1.89” x 3.78” x 4.72” {48 x 96 x 120 mm (H x W x D)}
Display
- 14-Segment LED Display
- 4-Digits up to ± 9999
Electrical Connectors
- 30 to 12 AWG (1 x 2.5 mm²)
- 30 to 16 AWG (1 x 1.5 mm²)
Environmental Protection
- IP20
- IP65
- Typical 4X
Frequency
- 0.001 Hz to 50 kHz
Humidity
- < 95 % Relative Humidity
Hysteresis
- 0 to 100 %
Input
- NAMUR According to EN 60947-5-6
- TTL
Isolation
- 2.3 kVac/250 Vac - Testing/Working
Load
- ≤ 800 ohms at Current Output
Mounting
- Panel Mount
Output
- ≤ 28 mA - Current Limit
- 0-20 mA - Porgrammable Signal Range
- 4-20 mA - Porgrammable Signal Range
Output Noise
- > 60 dB - Signal/Noise Ratio
Power Requirement
- < 2.8 W (5725A)
- < 3.6 W (5725D)
Response Time
- < 1 Period + 100 milliseconds
Span & Zero Effect
- < ± 0.5 % of Span - EMC Immunity Influence
Stability
- ≤ 0.01 % of Span/100 ohms - Load Stability
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Supply Voltage
- 19.2-300 Vdc
- 21.6-253 Vac, 50/60 Hz
Switch Type
- NPN/PNP Transistor
Temperature Range
- 20° to 28° C (68° to 82.4° F) - Calibration Temperature
- -20° to 60° C (-4° to 140° F)
- The 5725 measures, scales, and displays frequency signals found in many process speed and flow rate applications.
- The indicator can measure the period of the frequency, useful for displaying the elapsed time between events.
- The 5725D has two SPDT setpoint contacts and a 0/4...20 mA output for process control.
- The installed display provides IP65 environmental sealing, and additional protection is provided by the optional 8335 splash proof cover.
