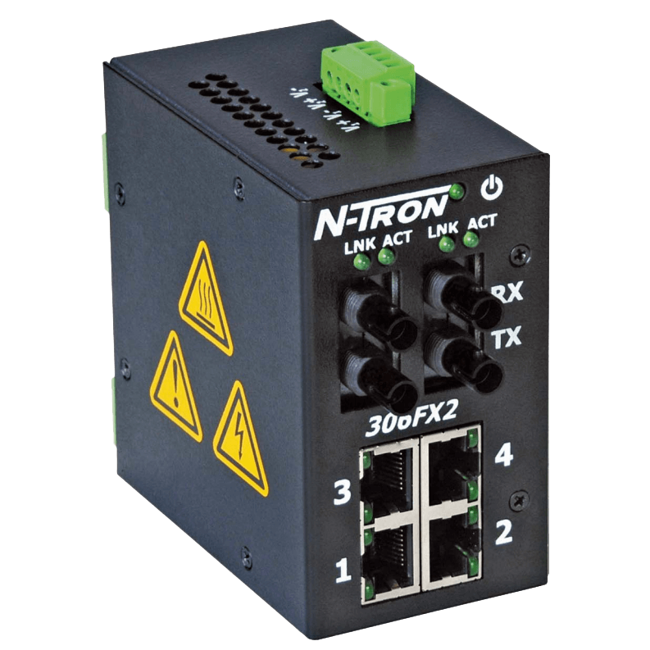

306FX-N Industrial Ethernet Switch
Brand: Red Lion ControlsThe N-TRON 306FX2 is an unmanaged six port Industrial Ethernet Switch.
It is housed in a ruggedized DIN-RAIL enclosure and is designed for use in industrial data acquisition, control, and Ethernet I/O applications.
Features- Compact size, small footprint
- Full IEEE 802.3 and 1613 compliance
- NEMA TS1/TS2 compliance
- American Bureau of Shipping (ABS) type approval
- Extended environmental specifications
- Four 10/100BaseTX RJ-45 ports
- Two 100BaseFX Port ST or SC
- RJ-45 ports supports full/half duplex operation
- LED link/activity status indication
- Store and forward technology
- Auto sensing duplex, speed and MDIX (RJ-45)
- Up to 1.0 Gb/s maximum throughput
- Rugged Industrial DIN-Rail Enclosure
- Redundant power inputs (10-30 Vdc)
- N-view OPC switch monitoring option
Specifications
Brand
Applications
- Control Applications
- Ethernet I/O
- Industrial Data Acquistion
Approvals & Certifications
- ABS for Shipboard Applications
- CE EN 61000-6-2,4, EN 55011, EN 61000-4-2, 3, 4, 5, 6
- FCC Part 15 Class A
- GOST-R
- IEEE 802.3, 1613
- RoHS
- UL 1604 (US & Canada) Class I, Div. 2, Grade A, B, C, D, T4A
Current
- Inrush: 10 A / 0.9 ms at 24 V
Electrical Connectors
- 10/100Base-TX: Four (1) RJ45 TX Ports
- 100BaseFX: Two (2) ST or SC Duplex Ports
Environmental Protection
- NEMA TS1
- NEMA TS2
Humidity
- 10 to 95 % RH, Non-Condensing
Indication
- LED Link / Activity Status Indication
Input
- 10-30 Vdc
- 250 mA at 24 V
Mounting
- DIN Rail Mounting
- Panel Mount
- Rack-Mounted
Operating Temperature
- -20° to 70° C (-4° to 158° F)
Power Supply
- N-Tron: 1.3 A at 24 Vdc
Shock
- 200 G at 10 ms
Storage Temperature
- -40° to 85° C (-40° to 185° F)
Vibration
- 50 G, 5 to 200 Hz, Triaxial
Wiring
- Wiring Clearance Front: 4" (10.16 cm)
- Wiring Clearance Top: 1" (2.54 cm)
