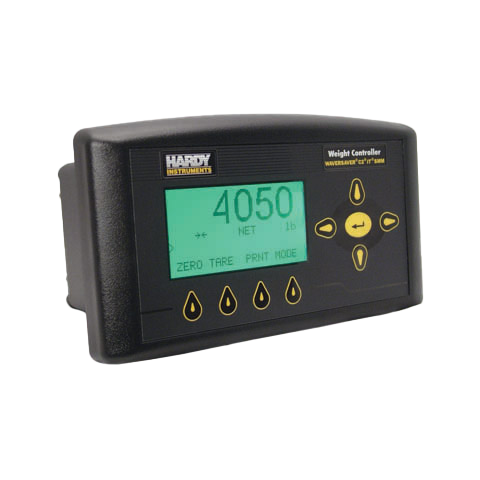

HI 4050CW Check Weighing Bundle
Brand: Hardy Process Solutions, IncThe high speed HI 4050CW check weighing instrument can process up to 250 weight measurements per second at high resolution (1:30:000).
The 4050CW consists of a special version of the HI 4050 weight controller with built-in check weighing firmware connected to up to four analog load cells and a Hardy junction box.
The HI 4050CW is perfect for building new systems for either static or dynamic check weighing or retrofitting the weight electronics of older, less reliable systems.
Hardy Waversaver® and Waversaver+ technology suppresses vibration and mechanical noise, dramatically reducing scale settling time and increasing the speed of stable gross and net weight readings.
Waversaver+ provides active filtering making weight readings fast, stable and accurate.
Features- Waversaver® vibration eliminator
- C2® (or eCAL) Electronic Calibration
- Integrated Technician® Operator Diagnostics
- Embedded Web Server
- Secure Memory Module Stores Configuration Data
- Check-Master
Specifications
Resolution
- Stable processed weight 1: 30: 000
- Maximum Displayed Resolution: 1: 999,999
- Internal Resolution 1: 8,388,608
Update Rate
- Processed weight, display, communications: 110 or 250 updates per sec.
- Unprocessed weight (A/D conversion: 4800 times per sec.
Accuracy
- > 0.025 % Full Scale of sensor
Weight Ranges
- Analog: Depends on load point selection
Averaging
- Sliding up to 250 readings in single unit increments
Standard Interfaces
- Ethernet: 10/100base T, embedded web server
- Serial RS-232: Simplex to printer or to remote scoreboard
Stable Weight Reading
- user selectable .25 Hz to 25.0 Hz
Calibration Techniques
- C2 weightless calibration
- Traditional 2-Point calibration with test weights
Display
- 64 x 128 LCD display with backlight
Units of Measure
- Lb, lb/ oz., oz., ton, kg, g, t
Outputs
- Four optional 5 to 24 Vdc (-DIO)
Mode
- Gross
- Net
Load Point Excitation
- 24 Vdc
Digital Inputs
- Three mappable, non-Isolated
- Three optional mappable, isolated (-DIO)
Power Requirements
- AC: 110-240 Vac, 47-63 Hz
- DC: 12-24 Vdc
- 10 watts max
Operating Temperature
- HI4050-AC: -10° to +40° C (14° to 104° F)
- HI4050-DC: -10° to +60° C (14° to 140° F)
Storage Temperature
- PM: -30° to +70° C (-22° to 158° F)
- DR: -40° to +85° C (-40° to 185° F)
Enclosure
- Panel/remote mount, DIN mount
- Stainless Steel wall mount
Dimensions
- Front panel: 4”h x 7”w x .725”d (101.6h x 177.8w x 18.4d mm)
- Housing: 2.98”h x 5.65”w x 3”d (75.7h x 143.5w x 76.2d mm)
- Wall Mount: 11.5”h x 8.28”w x 5.54”d (292h x 210.3w x 140.6d mm)
Approvals
- UL/cUL, CE certification (on instrument only)
- Certification on digital interface card
- Intertek Hazardous Certification: Hazardous Class I, Div. 2, Groups A,B,C,D, T4A and Class II, Div. 2, Groups F, G, T4A, Class III
