High Voltage Terminal Enclosures

Brand: Adalet

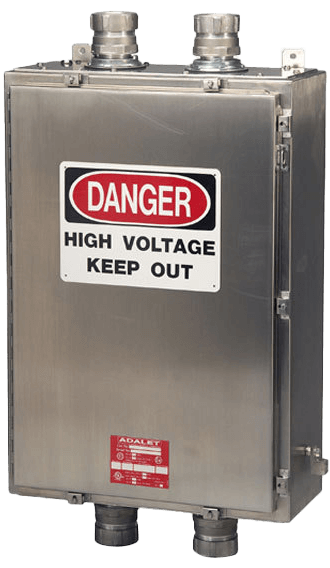

The HV4X(6) series of increased safety high voltage terminal enclosures feature a single door style with clamped cover and are available in stainless steel 316L or 304.

The one in/one out connection series is designed for shielded or unshielded cables up to 8kV at 500A per phase, while the two in/two out connection series is designed for two parallel unshielded cables up to 1.1kV at 1000A per phase.

The HV4X(6) series is offered in sizes from 24"x12"x6" to 60"x36"x16" for the 1 x 1 connection series and 20"x20"x8" to 60"x36"10" for the 2 x 2 connection series.
Features
  • 31 standard sizes available in 1 x 1 or 2 x 2 connection options
  •  Stainless steel cover clamps and screws
  • Continuous piano hinge with removable steel pin
  • Watertight silicone gasket
  • Set of three porcelain insulators (1 x 1) or mechanical connections (2 x 2)
  • Adjustable mounting plate (1 x 1 and 2 x 2)
  • Adjustable clamp rails (1 x 1 and 2 x 2)
  • Padlock hasp and staple
  • Internal rail mounting system
  • Ground stud on box and cover

Specifications

Brand

Material

  • Enclosure and cover constructed from 14 gauge (.075) stainless steel with #3/4 brush finish
  • Type 304 or 316L Stainless Steel
  • Gland plates constructed from 10 gauge (.1345) stainless steel with #3/4 brush finish
  • Silicone gasket constructed from 1/4” Bisco silicone with acrylic PSA
  • Gland plate gasket constructed from 1/8” Bisco silicone with acrylic PSA
