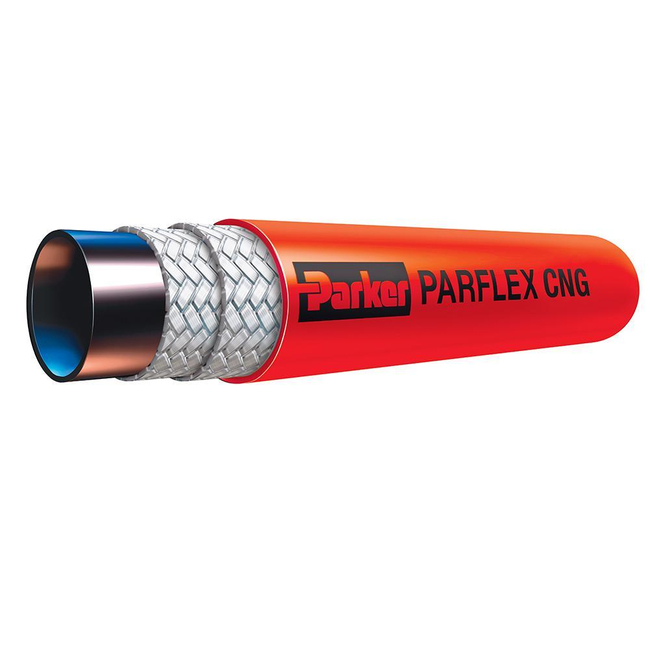

Compressed Natural Gas Hose - Electrically Conductive - 5CNG

Compressed Natural Gas Hose - Electrically Conductive - 5CNG

Brand: Parker Hannifin
Add Product to My Catalog

5CNG hose for compressed natural gas conveyance conforms to: NFPA 52, ANSI/IAS NGV 4.2, ECE R110 (factory built only) and CSA12.52 Class A and Class D.

5CNG compressed natural gas hose for on-vehicle fuel systems and CNG dispensers is used to transfer compressed natural gas (CNG).

5CNG hose is up to 30% lighter than rigid tubing and is supplied in a single-line or bonded twin-line CNG hose assembly.

A twin-line hose assembly can reduce part number complexity and eliminate tangled hoses in a dispenser system.
Features
  • Light weight
  • Electrically conductive nylon core tube
  • Twin-line hose assemblies prevent tangling
  • CSA listed
  • Available in ¼” (-4) to 1” (-16)

Specifications

Brand

Applications

  • Transportation

Color

  • Red

Compatible Fittings

  • CG Series

Hose I.D. (inch)

  • 1/4”, 3/8”, 1/2”, 3/4”, 1”

Hose I.D. (mm)

  • 6, 10, 13, 19, 25

Hose I.D. (Size)

  • -4, -6, -8, -12, -16

Hose O.D. (inch)

  • 0.55 - 1.59

Hose O.D. (mm)

  • 14 - 40

Hose Type

  • Conductive

Industry Standards

  • ANSI/CSA NGV 4.2*CSA 12.52 (Class A, Class D), ECE R110 CNG Class 6, ANSI NGV 3.1*CSA 12.3 (Class B - P36) 5CNG-8 Only, NFPA 52, CSA Certificate (#1053249, #70143077)

Maximum Working Pressure (bar)

  • 345

Maximum Working Pressure (Mpa)

  • 34.5

Maximum Working Pressure (psi)

  • 5000

Maximum Working Temperature (°C)

  • 85° C

Maximum Working Temperature (°F)

  • 185° F

Media

  • Fuels

Minimum Bend Radius (inch)

  • 2 - 10

Minimum Bend Radius (mm)

  • 51 - 254

Minimum Working Temperature (°C)

  • -40° C

Minimum Working Temperature (°F)

  • -40° F

Tube Type

  • Semi-Rigid Tubing

Vacuum Rating (inches of Hg)

  • 28

Vacuum Rating (mm of Hg)

  • 711.2

Weight (kg/m)

  • 0.11 to 0.53

Weight (Lbs/Ft)

  • 0.08 - 0.36

  • CNG dispenser
  • Fleet transit
  • CNG fuel transfer
  • Residential CNG refueling
