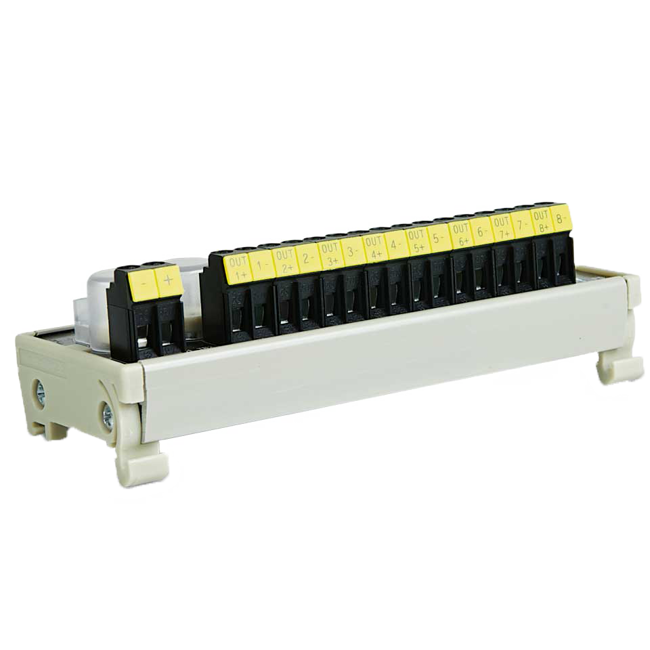

DEPRO-FMM/8/24V Micro Fuse Module

Brand: Emphatec
Add Product to My Catalog

This module provides fusing and power distribution in one module. The input is bussed to 8 fuses and each output provides + and - terminals.

The fuses are the micro style (Littelfuse / Wickmann TR5 or equivalent) rated 2 A Maximum. The total current rating for all 8 channels is 10 A.

The 35 mm DIN rail mounted package is designed to require minimal space between wire ducts. Fuses are socket mounted beneath protective covers.

Emphatec offers the module with 0.5 A, 1.0 A or 2.0 A fuses installed. Each fuse has an associated status LED that provides fuse healthy indication. The DEPRO -FMM/8/24V is designed for 24 Vdc applications only.
Features
  • Eight socket mounted micro fuses

  • Compact packaging minimizes space between wire ducts

  • cCSAus Class 1 Division 2 and Zone 2 certified

    • 1 - 1 of 1 Part Numbers
    DEPRO-FMM/8/24V
    DEPRO-FMM/8/24V
    • Fuse - 0.5 A
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Ambient Temperature Range

    • Operating: -25° to 45° C (-13° to 113° F)

    Approvals & Certifications

    • CSA (C,US) Class I, Div. 2, Groups A, B, C, D, Ex NA IIC, Zone 2 AEx NA IIC

    Current

    • 10 A, Max.
    • 2 A, Max.

    Electrical Connectors

    • Terminations: 26 to 12 AWG

    Indication

    • Status LED: Green (Fuse Healthy)

    Mounting

    • 35 mm DIN Rail Mounted

    Torque

    • 0.5 to 0.6 Nm

    Voltage

    • Nominal: 24 Vdc

    Documentation

    Data Sheets
