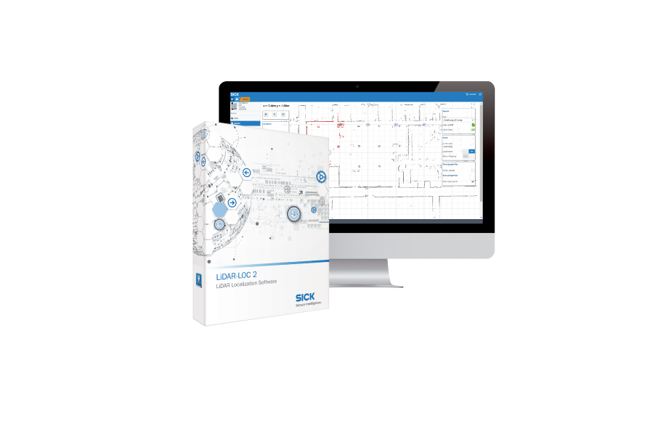

LiDAR-LOC LiDAR Localization
Brand: Sick AGThe LiDAR-LOC is a localization solution for all autonomously moving mobile platforms. It uses LiDAR sensor data and links it with information from other sensors as needed. This is how the LiDAR-LOC achieves accurate and reliable localization results based on natural contours – environmental adjustments are not necessary. Integrating the solution into an existing infrastructure and putting it into operation is easy.
The LiDAR-LOC is available as a modular software solution that runs on SICK AppSpace-certified as well as various third-party controllers. This means the LiDAR-LOC is the optimal starting point for the development of vehicle navigation.
At a glance
- High repeatability: < 10 mm
- Driving speed up to 3 m/s
- Rot. rate max. 45°/ s
- Position output with up to 33 Hz
- Easy-to-operate user interface (web browser) and ROS integration
- Integration options for vehicle odometry and reflector detection
- Scalable localization solution – suitable for the respective application
- High positioning accuracy & repeatability
- Additional sensor signals can be integrated for individual applications
- No changes to the infrastructure with additional artificial landmarks required
- Support of safety and standard LiDAR sensors for a wide range of solution concepts
- Simple integration of new functions thanks to modular structure
- Reliable localization in environments with high dynamics or few contours
1 - 2 of 2 Part Numbers
1122751
- Product Category - Embedded Software
- Supported Products - SIM1000 FX, SIM1012, Controller (IPC), x86-64 Architectures
- Type - LiDAR-LOC 2
1122752
- Product Category - None
- Description - None
- Application - None
- Supported Products - MLS, OLS, GLS
- Type - Virtual Line Navigation
1 - 2 of 2 Part Numbers
Specifications
Brand
Product Category
- Embedded Software
- Embedded Software Including Runtime Environment
Resolution
- 1 mm, Position
- 0.001°, Orientation
Repeatability
- Typical 10 mm, Position
- Typical < 0.25°, Orientation
Supported Product
- SIM1000 FX
- SIM1012
- Controller (IPC)
- MLS
- OLS
- GLS
- X86-64 Architectures
- Indoor position determination for all types of mobile platforms, industrial automated guided vehicles (AGVs), service robots and automated guided vehicle systems (AGV systems)
