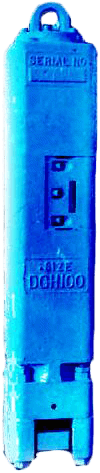

Vulcan DGH-100
Brand: PACO Ventures, LLCThe modern day Contractors' need for versatile, hard-hitting, profit producing equipment caused the Vulcan Iron Works Inc. to develop the DGH 100B hammer. This versatile hammer can be used as a sheeting, pipe and wood pile hammer and can also be used as a demolition and tamping tool.
THE DGH-100B is of the differential acting type, embodying the same principles as the well known Super Vulcan Series.
Its compact, clean design allows the hammer to be used in tight close quarters and is readily adaptable to all types of rubber-tired and crawler mounted rigs.
The DGH-100B is a tool that Contractors, both large and small have found numerous cost cutting uses for. Due to its simple design -"Only four moving parts"- it presents low incidence of maintenance, thus eliminating down time, which increases profit picture.
Features- Differential-Acting - A proven and reliable engineering principle
- Compact - For close quarters and ease of handling
- Modern clean design
- Drives wide variety of piles - both bearing piles and sheet piles
- Hammer is fully automatic
- Minimum maintenance - only four moving parts
- Easy to lubricate
- Bar type cylinder head for ease of attaching hoisting equipment
- Same base used for wood, steel and pipe piles. No changing necessary
- Readily portable in light hoisting equipment
- Economically priced
- A valve of the rocker type held against its seat by air pressure, prevents air leak age as wear occurs
Specifications
Brand
Ram Weight
- 100 lb (45 kg)
Hammer Weight
- 786 lb (357 kg)
Length
- 4'2" (1,270 mm)
Maximum Energy
- 386 ft-lb (53 kgm)
Blows Per Minute
- 303 bpm
Air Required
- 74 cfm (2 m²/min)
Inlet Pressure
- 60 psi (4 bar)
Type
- Differential
