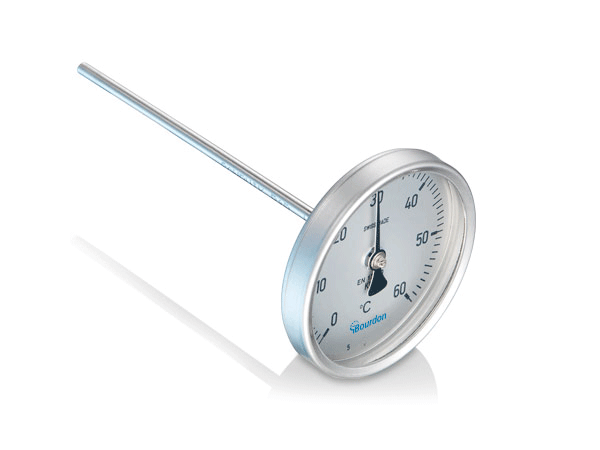

TB063 Bi-Metal Thermometer
Brand: Bourdon
Features
- Multi-purpose standard thermometer
- Class 1 and 2 according to EN 13190
- Immersion tube stainless steel
- Immersion length 100 to 400 mm
Specifications
Brand
Accuracy According to EN 13190
- Above 250° C: Class 2
- Up to 250° C: Class 1
Case Material
- Stainless Steel 1.4301, AISI 304
Dial
- Brushed Finish, Aluminum
Immersion Tube Material
- Stainless Steel 1.4571, AISI 316Ti
IP Protection Rating
- IP52
Minimum Immersion Length
- Ranges > 60° C: Le ≥ 39 mm
- Ranges ≤ 60° C: Le ≥ 59 mm
Nominal Size
- 63 mm
Pointer
- Black, Aluminum
Temperature Range
- -30° to +500° C
Thermometer
- 47 G
Window Material
- Instrument Glass
- Food & Beverage
- Chemical
- Water & Waste water
- Energy
- Machinery
