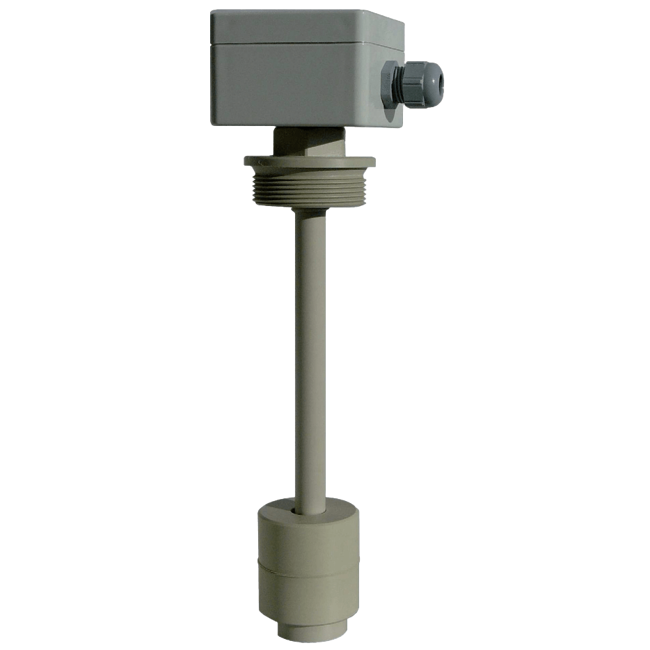

SR 30 Float Switch
Brand: Trimod BestaFloat switch made from PP for liquids and/or aggressive media. The magnetic field of a permanent magnet built into the float operates the reed contacts installed in the tube.
Specifications
Brand
BSP Connection
- G 1-1/2” Male
- G 2” Male
Density Range
- ≥ 600 kg/m³
Enclosure, Body Material
- Polypropylene
- PVC
- PVDF
Environmental Protection
- IP66
Length
- Tube Length: 59.06” (1,500 mm)
Materials of Construction
- Connecting Box: Aluminum
- Connecting Box: Polycarbonate
- Float: Polypropylene
Maximum System Pressure
- psi: 43.5 (kPa: 300, bar: 3)
Mounting Position
- Vertical ± 30°
Operating Pressure
- psi: 44 (kPa: 300, bar: 3) - Max.
Operating Temperature
- 80° C (176° F) - Max.
Power
- Change-Over Switch: 230 Vac, 40 VA, 1 A AC, Max.
- Change-Over Switch: 230 Vdc, 20 W, 0.5 A DC, Max.
- Opener/Closer: 230 Vac, 100 VA, 1 A AC, Max.
- Opener/Closer: 230 Vdc, 50 W, 0.5 A DC, Max.
Sensor, Probe Style
- Float (Cylindrical)
Switch Points
- Eight Switch Points
Temperature Range
- -10° to 80° C (14° to 176° F)
