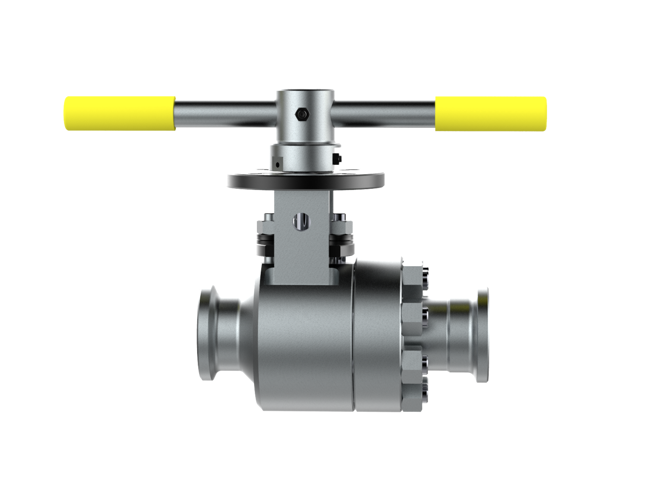

CR2 Accuseal Power Generation Valve
Brand: Accuseal
Features
- Provides reduced total cost of ownership for operator
- Hub eliminates welding and PWHT requirements after installation
- Designed for extended lifespan with easy disassembly, maintenance, and complete repairability in the field
- Omni-Lap 360° optimized roundness and matched ball and seat assemblies ensure 100% seal
- Tight shut-off to API 598/MSS SP-61
- Withstands severe thermal shocks
- Field repairable
Specifications
Brand
Bore Size
- 1" to 3"
Maximum Operating Pressure Rating
- 732 to 6,000 psi
Operating Temperature
- -29° to 593° C (-20° to 1,100° F)
ASME Pressure Class
- 600 to 4500 Limited Class
Material of Construction
- Ball & Seat: Inconel 718 / Spray & Fuse
- Stem: Inconel 718 / A-286 Hardfaced
- Packing Bushing/Packing Follower: 316 SS Hardfaced
- Packing Rings: Grafoil®
- Wave Spring: A-286
- Anti-Extrusion Ring: Inconel Wire Reinforced Grafoil®
- Articulating Gland Flange: 4130 Hardfaced
- Live Loading Belleville Springs/Stem Retaining Ring: Stainless Steel
- Retaining Pins: Inconel 718
- Guide Bearing: Ni-Al-Brz
- Mounting Flange: Carbon Steel
- Gasket: Graphite
- Retaining Sleeve: 304 SS
Body/End Connect Material
- A105, A182 F22 Cl.3, A182 F91
- Boiler Drains and Vents
- Turbine Drains and Vents
- Control Valve Isolation
- Equipment Isolation
- Longer Lasting Alternative to Gate and Globe Valves
