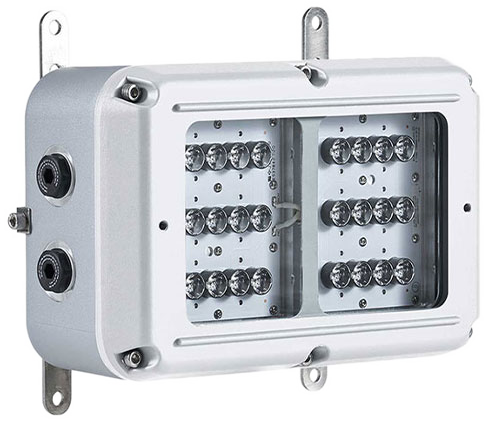

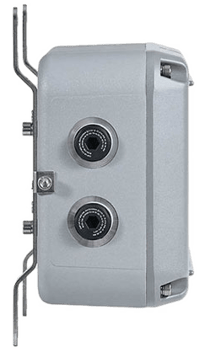

RB Series - 2,500 - 4,650 Lumen Bulkhead Floodlight

Brand: Nemalux Industrial
Add Product to My Catalog

nemalux-rb-series-bulkhead-floodlight-b-zone-1-600.png nemalux-rb-series-bulkhead-floodlight-a-zone-1-600.png Nemalux-RB-Series-Bulkhead-Floodlight-e-zone-1-yoke-mount-600.png nemalux-rb-series-bulkhead-floodlight-d-zone-1-600.png Nemalux-RB-Series-Bulkhead-Floodlight-c-zone-1-600.png Nemalux-RB-Series-Bulkhead-Floodlight-g-exit-sign-600.png Nemalux-RB-Series-Bulkhead-Floodlight-h-battery-backup-600.png
Nemalux's RB is a compact bulkhead light designed for harsh & hazardous locations use. The RB can also be used as an exit sign within harsh environments.

RB is a compact, hazardous location-rated LED Bulkhead luminaire designed for industrial applications.

It features lightweight, low-profile aluminum housing with stainless steel external fasteners and brackets for ease of installation.

Effective Illumination for Industrial Applications
  • Robust & Durable
    • RB Bulkheads are constructed with a marine grade aluminum housing, stainless steel bracketry and fastenings. Allowing for installations in extreme environments.
  • Hazardous Area Rating
    • The Zone 1/Zone21 model is suitable for explosive gas atmospheres that have a high-risk occurrence in normal operation.
    • The Zone 2/Zone22 model is suitable for an area in which an explosive gas atmosphere is not likely to occur under normal operation. And, if it occurs, will only exist for a short time.
  • Exit Sign Capabilities
    • An emergency exit sign kit is available. This comes many of configurations to suit different installations.
Engineered for Extreme Environments
  • Intelligent Emergency Variants
    • Emergency variants are available to provide up to 3 hours of battery back-up at 25% power.
    • The Intelligent Emergency system self-tests the battery. Communicating via a tri-colour LED indicator.
  • Compact Design
    • The compact, low-profile design is ideal for applications where space is restricted.
  • Beam Angles
    • Available in a range of different beam patterns, both circular and elliptical.
Simplified Installation & Operation
  • Field Serviceable
    • A unique modular design allows quick and easy maintenance. PSUs and controls can be accessed from the front.
    • Maintenance can be carried out while the luminaire is in-situ.
  • Mounting Options
    • The luminaire can be mounted flush to a flat surface and allow in and out wiring.
    • Cable entries are located on the side of the fixture.
Features
  • A unique modular design, key components are easily accessible for straightforward maintenance and inspection
  • Available with an emergency exit sign kit which comes with a number of configurations to suit different installations
  • Designed from marine grade aluminum and able to withstand the most extreme environments
  • Self-testing emergency battery providing up to 3 hours emergency back-up
  • Available in a range of different beam patterns, both circular and elliptical
  • Approved for use in general, marine, & hazardous locations
  • RB Certifications and Safety Ratings
    • Certified for general and marine location use under:
      • PROTECTION/CERTIFICATION – ZONE 1/21 VARIANTS
        • CML13ATEX3007, IEC Ex CML14.0001 & CML21UKEX3099
        • II 2 GD Ex eb mb IIC T4 Gb Ta-52°C to +55°C (standard variants)
        • II 2 GD Ex eb mb IIC T4 Gb Ta-20°C to +46°C (emergency variants)
        • Ex tb IIIC T98°C Db
      • PROTECTION/CERTIFICATION – ZONE 2/22 VARIANTS
        • CML17ATEX4231, IEC Ex CML17.0135 & CML21UKEX4106
        • II 3 GD Ex ec mc IIC T4 Gc Ta-50°C to +55°C (standard variants)
        • II 3 GD Ex ec mc IIC T4 Gc Ta-20°C to +55°C (emergency variants)
        • Ex tc IIIC T98°C Dc

View_Details

Specifications

Brand

Input Voltage Options

  • 110-254 VAC or 18-69 VDC

Ambient Temperature Range

  • -52°C to +55°C

Ingress Protection Level

  • IP66/67

Fixture Dimensions

  • 11.3" x 7.2" x 4.13"

Fixture Weight

  • 5.0 kg | 11.0 lbs
