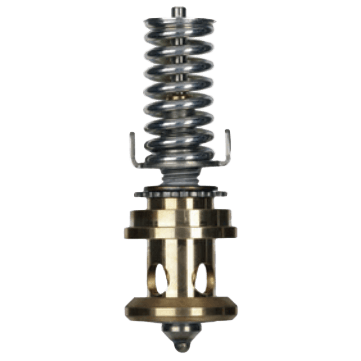

TE 5/TE 12/TE 20/TE 55 Orifice for Expansion Valve
Brand: DanfossThe TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat.
The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability.
The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.
Features- Wide operating range: Wide operating range: -40° to 10° C (-40° to 50° F ); -60° to -25° C (-75° to -15° F)
- Refrigerants: R407F, R407A, R448A, R449A, R404A, R507, R22, R134a and R407C
- Laser welded stainless steel power element, capillary tube and bulb
- Wide capacity range, rated capacity from: R448A/R449A: 10.4 to 226 kW (2.97 to 64.5 TR); R407F: 11.0 to 250 kW (3.14 to 71.0 TR); R404A/R507: 8.17 to 182 kW (2.33 to 52.0 TR)
- MOP function is available
- Superior charge performance
- PS / MWP (maximum working pressure): 28 bar / 400 psig
- Minimized capacity gap and overlap between orifices
- TE 55 has balanced port design
- Patented bulb strap design
- Interchangeable orifice assembly:
- easy storage
- easy capacity matching
- better service
1 - 12 of 16 Part Numbers
067
- Valve Type - TE 5
067B2708
- Valve Type - TE 12
- Orifice Number - 5
067B2709
- Valve Type - TE 12
- Orifice Number - 6
067B2710
- Valve Type - TE 12
- Orifice Number - 7
067B2771
- Valve Type - TE 20
- Orifice Number - 8
067B2773
- Valve Type - TE 20
- Orifice Number - 9
067B2788
- Valve Type - TE 5
- Orifice Number - 0.5
067B2789
- Valve Type - TE 5
- Orifice Number - 1
067B2790
- Valve Type - TE 5
- Orifice Number - 2
067B2791
- Valve Type - TE 5
- Orifice Number - 3
067B2792
- Valve Type - TE 5
- Orifice Number - 4
067G2701
- Valve Type - TE 55
- Orifice Number - 10
1 - 12 of 16 Part Numbers
Specifications
Brand
Capillary Material
- Tube & Bulb: Laser Welded Stainless Steel
Operating Pressure
- psi: 406.1 (kPa: 2,800, bar: 28)
Operating Temperature
- -60° to 10° C (-76° to 50° F)
Pressure Range
- Evaporating Pressure - psi: 5 to 120 (kPa: 30 to 827.4, bar: 0.3 to 8.27)
Process Temperature
- Complete Valve when Not Assembled: 70° C (158° F)
- When Valve is Assembled: 100° C (212° F) - Max.
Proof Pressure
- Maximum
Rated Capacity
- 1.91 to 250 kW
- Air conditioning system
- Chiller
- Cold room
- Freezer
- Other refrigeration systems
