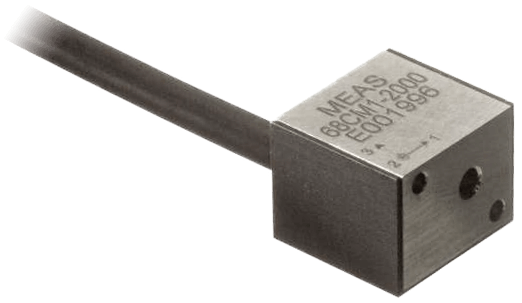

68C Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 68C Accelerometer is a small, compact triaxial device designed for vehicle impact and road testing.
The unit incorporates three replaceable sensing modules with mechanical overload stops that provide high shock protection in rugged applications. The model 68C accelerometer is compliant with SAE-J211 specifications for anthropomorphic dummy instrumentation. The model 68 cm1 has a cover installed for additional protection.
Features- ±100 to ±2000g Ranges
- 2-10 Vdc Excitation
- Temperature Compensation
- Mechanical Overload Stops
- Replaceable Sensors
- Optional Cover
- World SID Approved
1 - 12 of 3,600 Part Numbers
68C-0100-00
- Range - 100 G
- Cable Length - Custon Length: Inches
- Calibration - No Calibration Option
68C-0100-00-01
- Range - 100 G
- Cable Length - Custon Length: Inches
- Calibration - 5 Vdc
68C-0100-00-03
- Range - 100 G
- Cable Length - Custon Length: Inches
- Calibration - 3.3 Vdc
68C-0100-10
- Range - 100 G
- Cable Length - 1 Custon Length: Inches
- Calibration - No Calibration Option
68C-0100-10-01
- Range - 100 G
- Cable Length - 1 Custon Length: Inches
- Calibration - 5 Vdc
68C-0100-10-03
- Range - 100 G
- Cable Length - 1 Custon Length: Inches
- Calibration - 3.3 Vdc
68C-0100-100
- Range - 100 G
- Cable Length - 10 Custon Length: Inches
- Calibration - No Calibration Option
68C-0100-100-01
- Range - 100 G
- Cable Length - 10 Custon Length: Inches
- Calibration - 5 Vdc
68C-0100-100-03
- Range - 100 G
- Cable Length - 10 Custon Length: Inches
- Calibration - 3.3 Vdc
68C-0100-1000
- Range - 100 G
- Cable Length - 100 Custon Length: Inches
- Calibration - No Calibration Option
68C-0100-1000-01
- Range - 100 G
- Cable Length - 100 Custon Length: Inches
- Calibration - 5 Vdc
68C-0100-1000-03
- Range - 100 G
- Cable Length - 100 Custon Length: Inches
- Calibration - 3.3 Vdc
1 - 12 of 3,600 Part Numbers
Specifications
Accuracy
- ± 1 % of Full Scale Output - Non-Linearity
Applications
- Crash Testing & Impact Testing
- Dummy Instrumentation
- Off-Road Testing & Road Testing
Approvals & Certifications
- CE
- RoHS
Electrical Connectors
- Braided Shield
Environmental Protection
- IP61
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 4,000 Hz
Insulation Resistance
- > 100 megaohms
Mounting
- M2 x 0.4, 16 mm Length
NACE & NIST
- NIST Traceable Amplitude Calibration
Operating Temperature
- -20° to 85° C (-4° to 185° F)
Output
- < ± 50 mV - Zero Acceleration Output
Output Noise
- 10 µV RMS
Resistance
- 2,400 to 6,000 ohms
Sensitivity
- < 3 % - Transverse
Shock
- 5,000 G
Storage Temperature
- -40° to 90° C (-40° to 194° F)
Thermal Drift
- ± 0.05 % of Full Scale Output/°C - Thermal Zero Shift
Torque
- 3 In/Lbs
