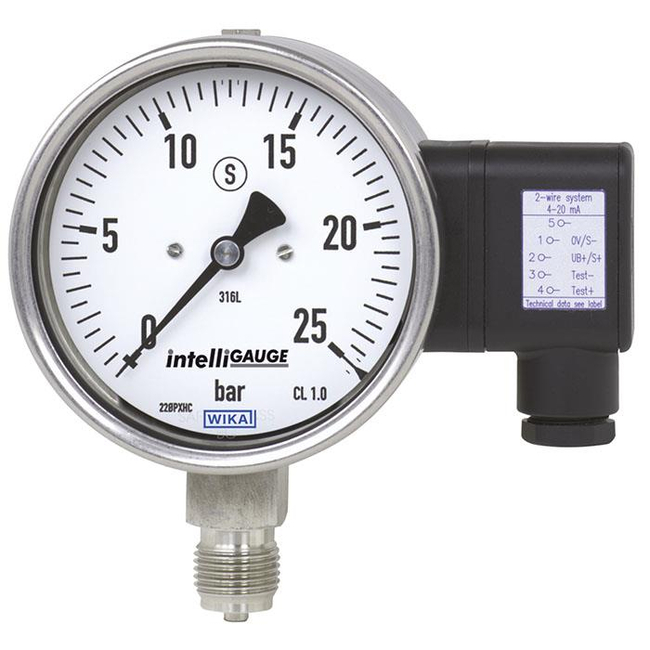

Bourdon Tube Pressure Gauge with Output Signal - PGT23.100, PGT23.160

Brand: WIKA Alexander Wiegand SE & Co. KG

Wherever the process pressure has to be indicated locally and, at the same time, a signal transmission to the central control or remote centre is desired, the model PGT23 intelliGAUGE® can be used.
Features
  • No configuration necessary due to "plug-and-play"
  • Signal transmission per NAMUR
  • Measuring ranges 0 ... 0.6 bar to 0 ... 1,600 bar
  • Easy-to-read analogue display with nominal size 100 or 160
  • Safety version S3 per EN 837

Specifications

Design

  • ASME B40.100 & EN 837-1

Sizes

  • 4” or 6” (100 or 160 mm)

Accuracy Class

  • ± 1 % of Span (ASME B40.100 Grade 1A)

Ranges

  • 0/15 psi to 0/20,000 psi or other equivalent units of pressure or vacuum

Pressure Connection

  • 1/2” NPT or G 1/2B, 22 mm flats
  • Lower Mount (LM)
  • Material: 316L Stainless Steel

Bourdon Tube

  • > 1,500 psi, helical-Type
  • < 1,500 psi, C-Type
  • Material: 316L Stainless Steel

Movement

  • Copper Alloy

Dial

  • White Aluminum with Black Lettering

Pointer

  • Black Aluminum

Case

  • Scale Ranges < 0/200 psi with compensating valve to vent,case, IP65 weather Protection
  • Stainless Steel, with solid baffle wall and blow-out back

Window

  • Laminated Safety Glass

Cover Ring

  • Bayonet Ring, Stainless Steel

  • Acquisition and display of processes
  • Output signal 4 ... 20 mA for the transmission of process values to the control room
  • Easy-to-read, analogue on-site display needing no external power
  • Process industry: Chemical industry, petrochemical industry, oil and gas, power generation, water and wastewater
