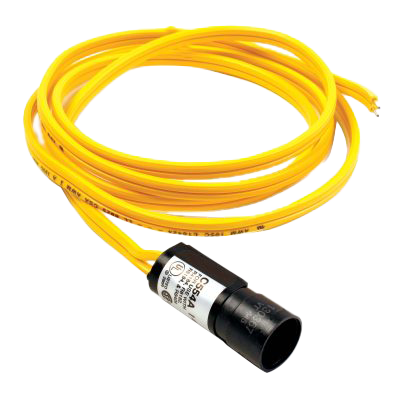

C554A1794/U Cadmium-Sulfide Flame Detector with 60 in. Leads, Type "R" Mounting Bracket and 130367 Cad Cell
Brand: Resideo Technologies Inc
Photoconductive flame sensing device for sequencing oil burner systems.
Features- On Flame Failure, the Light Sensitive Cadmium Sulfide Cell, in Conjunction with Flame Sensing Circuitry, Causes the Protectorelay® Control to Shutdown the Main Oil Burner.
- Glass-to-Metal Hermetic Seal in Plug-in Cell Prevents Deterioration by Humidity, Soot or Oil Fumes.
- Replaceable CAD Cell
Specifications
Brand
Dimensions
- 1-7/8 in. high x 1 in. long x 1/2 in. wide
- 47 mm high x 25 mm long x 13 mm wide
Includes
- Type "E" mounting bracket and fuel line adaptor
Used With
- R4166
- R4184
- R8182
- R8184
- R8185
- R8404
- R8991
- R7997
- R7184
- R7284
Mounting
- Type R bracket
Approvals, Underwriters Laboratories Inc.
- UL Listed: File MP268, Vol. 39, Sec. 1, Guide MCCZ
Approvals, Canadian Standards Association
- CSA Component Listed: File LR95329-1
Tradeline Value
- Tradeline
Electrical Connections
- Lead wires: NEC Class 1
Replacement Parts
- 120320 Replacement Cad Cell. 7.5 mA minimum sensitivity at 2 ft candles; 130367 Replacement Cad Cell. 12.0 mA minimum sensitivity at 2 ft candles.
Power Consumption
- 12 mA
Ambient Temperature Range
- 60° C maximum
- 140° F maximum
Lead Length
- 60 in.
- 152.4 cm
Sensitivity
- Minimum sensitivity at 2 ft candles
- Oil Fired Burners
Documentation
Brochure
- English Sales/Promotional Materials-Cross Reference Guide for Residential Combustion Heating and Cooling Parts pdf 2.5 MB
- English Sales/Promotional Materials-Residential Combustion Gas Controls Quick Reference Guide pdf 707 KB
- English Sales/Promotional Materials-Residential Combustion Gas Controls Quick Reference Guide pdf 481 KB
- English Sales/Promotional Materials-The Universal Choice - Selector Guide/Cross Reference for Residential Combustion Products pdf 116 KB
