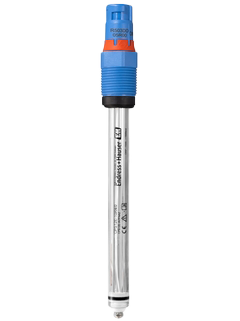

Digital ORP Sensor Memosens CPS12E
Brand: Endress+Hauser Group Services AGMemosens CPS12E is the digital all-round ORP sensor. It measures reliably even in harsh applications or hazardous areas.
Designed for low maintenance and a long operating life, the ORP sensor offers you best value for money.
Memosens CPS12E features Memosens 2.0 digital technology that provides the perfect basis for predictive maintenance thanks to extended storage of calibration and process data. The plug & play principle of Memosens allows for easy operation and more process uptime.
- Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants
- Incineration plants
- Water & wastewater treatment:
- Drinking water
- Cooling water
- Well water
- Wastewater treatment plants
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Features- Robust, low maintenance ORP sensor: Large, dirt-repellent PTFE junction protects from soiling by the medium. Long poison diffusion path prevents poisoning of the electrode reference
- Suitable for harsh applications: Gold pin or platinum cap cover the full range of oxidizing or reducing media. Shaft glass ensures high chemical stability. The sensor is pressure stable up to 17 bar (246.5 psi) absolute
- Memosens 2.0 technology enables the sensor to store more process and calibration data. It lays the basis for IIoT services and predictive maintenance
- Extremely reliable measurement with to non-contact, inductive signal transmission results in increased process safety
- Lab calibration and fast sensor replacement on site allow for minimized process downtimes, reducing operating costs
Specifications
Measuring Range
- –1,500 to 1,500 mV
Material of Construction
- Sensor Shaft: Glass to Suit Process
- Metal Lead: Ag/AgCl
- Aperture: Ring-shaped PTFE Diaphragm, Sterilizable
- O-ring: FKM
- Process Ccoupling: PPS Fiber-glass Reinforced
- Nameplate: Ceramic Metal Oxide
- ORP Measuring Element: Platinum or Gold
Process Temperature
- -15° to 135° C (5° to 275° F)
Process Pressure
- 0.8 to 17 bar (11.6 to 246.5 psi) Absolute
Temperature Sensor
- NTC 30k
Certifications & Approvals
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO
Ingress Protection
- IP68
Connection
- Inductive, Contactless Connection Head with Memosens 2.0 Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120, 225, 360 mm (4.72, 8.86, 14.17 inch)
- Chemical Industry
- Pulp & Paper Industry
- Power Plants
- Incineration Plants
- Water & Wastewater Treatment
