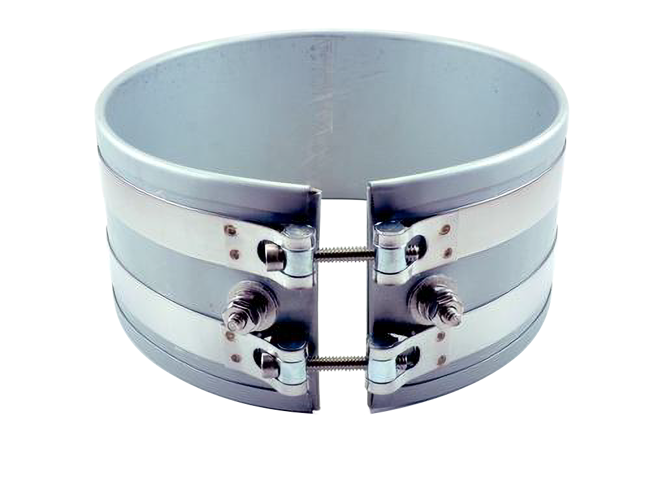

Mica Band Heater
Brand: Backer Marathon IncBacker Marathon band heaters are computer designed and manufactured to your specifications. Only the highest quality materials are used for optimal performance.
Our stock band heater inventory is constantly growing. We stock a wide variety of heaters right on the shelf that are available for same day shipping. We also offer a three-day expedited service on custom designs and there is never a minimum order requirement.
While Backer Marathon band heaters are commonly used in the plastic industry, they are also used in applications up to 900° F.
Termination options include leads, stainless steel braid, and post terminals.
Clamping options are available for all mounting requirements.
Special construction options include two piece construction, expandable construction, cutouts, and others.
Features- High temperature oxidation resistant metal sheath
- Highest grade mica insulation provides excellent electrical insulation at high temperatures and is resistant to moisture
- Clamping band is low thermal expansion stainless steel construction designed to main clamping pressure at elevated temperatures
- Nickel/Chromium resistance wire evenly would for uniform heat distribution and reliable accuracy
- Standard 10" fiberglass lead wires are UL rated and provide protection up to 850° F
- Approximately 1/8" thick
- Optimize heater performance by following these heater installation guidelines
Specifications
Brand
Cylinder Temperature
- Up to 800° F
Material of Construction
- Clamping Band: Stainless Steel
- Wire: Nickel/Chromium
- Leadwire: Standard 10" Fiberglass
Certifications & Approvals
- UL
Diameter
- 3.5" to 12"
Width
- 1.0" to 3"
Watts
- 300 to 2,300 W
Voltage
- 120 V
- 240 V
- 480 V
- Plastic Industry
- Used in Applications Up to 900° F
