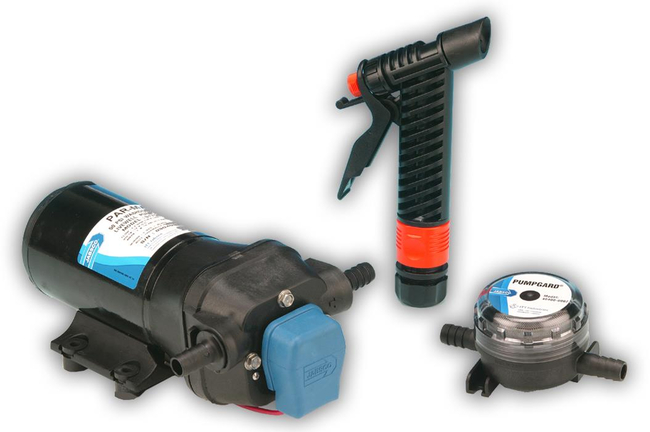

Jabsco Washdown Baitwell Pump, 31700 Series

31700 Series Washdown Baitwell Pump

Brand: Jabsco
Add Product to My Catalog

Washdown/Baitwell.
Features
  • Run Dry Without Damage
  • Smooth Flow
  • Four Piston, Diaphragm Pump
  • Powerful Heavy Duty Motor with Thermal Overload Protection
  • Snap-in Ports
  • Waterproof Coating (-039x models only)
  • Pressure Switch with Rubber Boot
  • Meets USCG Regulation 183.410 and EN ISO 8846 MARINE (Ignition Protection Standards)
  • Meets EN 50081-1 Electro-magnetic Compatibility

1 - 4 of 4 Part Numbers
31700-0092
31700-0092
Jabsco Washdown Baitwell Pump, 31700 Series
  • Amp Draw: @ 10 psi - 7 Amp: @ 40 psi - 11 Amp
  • Fuse Size: 15 Amp
  • Motor: Not Coated
  • Voltage: 12 Vdc
31700-0094
31700-0094
Jabsco Washdown Baitwell Pump, 31700 Series
  • Amp Draw: @ 10 psi - 4 Amp: @ 40 psi - 6 Amp
  • Fuse Size: 10 Amp
  • Motor: Not Coated
  • Voltage: 24 Vdc
31700-0392
31700-0392
Jabsco Washdown Baitwell Pump, 31700 Series
  • Amp Draw: @ 10 psi - 7 Amp: @ 40 psi - 11 Amp
  • Fuse Size: 15 Amp
  • Motor: Waterproof Coated
  • Voltage: 12 Vdc
31700-0394
31700-0394
Jabsco Washdown Baitwell Pump, 31700 Series
  • Amp Draw: @ 10 psi - 4 Amp: @ 40 psi - 6 Amp
  • Fuse Size: 10 Amp
  • Motor: Waterproof Coated
  • Voltage: 24 Vdc
1 - 4 of 4 Part Numbers

Specifications

Brand

Body Material

  • Glass-Filled Polypropylene

Motor Type

  • Permanent Magnet

Port Type

  • 1/2” (13 mm) Hose Barb

Shut Off Pressure

  • 3.5 bar (50 psi)

Voltage

  • 12 or 24 Vdc

Weight

  • 3.0 kg (6.5 lbs)
