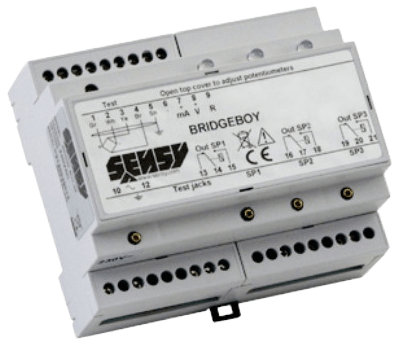

BRIDGE-BOY Load Limitation Electronics
Brand: Sensy - Sensors & Synergy S.A.Electronics with 1 or 3 set points designed, in combination with a load cell, to limit the load and/or to detect slack cable of a hoisting device (EOT cranes).
Features- Low cost
- 1 or 3 independent set points
- Set point 1 and 2 configurated for load limitation
- Set point 3 configurated by default for slack cable detection
- Adjustments by potentiometers easy to reach
- Analog outputs: 0-10 V and 4 to 20 mA
- Din rail mounting (TS 35)
- 115 Vac available by internal jumper
Specifications
Accuracy
- ± 0.5 % of Full Scale
Applications
- Load Limitation
Approvals & Certifications
- CE
Delay Time
- 60 milliseconds to 1 second
Environmental Protection
- IP20
- IP54
Input
- 0.4-2 mV/V
Mounting
- DIN Rail TS35
Output
- Current: 4-20 mA (Load Resistance ≤ 500 ohms)
- Tension: 0-10 V (Load Resistance ≥ 2.5 kiloohms)
Power Supply
- 10 VA
- 115-230 Vac (50/60 Hz, 10 VA)
- 48-115 Vac (50/60 Hz, 10 VA)
Relay Output
- 1 Relay
- 3 Relays
- 6 A (250 Vac) - Breaking Capacity Relays
Sensor Excitation
- 10-28 mA (11 V, Max.
Service Temperature
- -20° to 60° C (-4° to 140° F)
Storage Temperature
- -40° to 70° C (-40° to 158° F)
