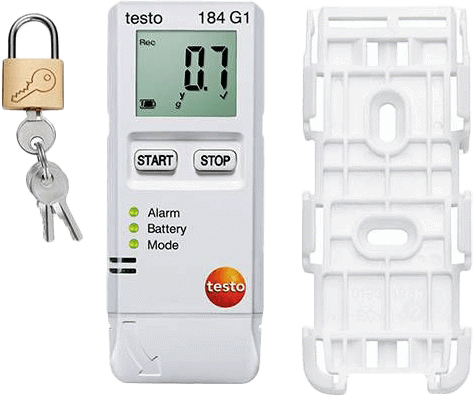

Testo 184 G1 - Temperature, Humidity and Shock USB Transport Data Logger
Brand: TestoThe testo 184 G1 data logger is suited for cold chain transportation, monitoring fragile or sensitive items and is capable of monitoring temperature, humidity, and shock.
With configuration, reports, calibration certificates on-board, and LED lights that indicate when specified limits have been exceeded, transport monitoring and documentation of sensitive goods is easy.
The testo 184 G1 data logger is ideal for the transport of fragile items.
Configuration of the testo 184 logger is as simple as plugging into a USB port and customizing the included PDF file.
With clear indication of configurable alarm settings, including measurement frequency, temperature, humidity or shock range, and start and end times, ensuring proper cold chain transportation has never been easier.
For international shipping, different languages can be independently configured for the recipient or shipper.
Available in packs of 1, 10, or 50, configuring multiple devices is as simple as drag and drop.
Features- Easy programming and reporting without additional software (plug and play)
- Measurement data memory for up to 65,000 readings
- Easy-to-change battery
- Battery life up to 120 days
- Professional software for programming the logger and data analysis
- Convenient Excel export functions
- NFC communication to compatible devices allows for unaltered documentation to display immediately
- Easy configuration on any computer with pre-loaded files
- On-board electronic calibration certificate eliminates the hassles of maintaining traceability
- IP30 protection class
- GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant
- Includes Wall Mount with lock and keys
- Dimensions are: 4.125” H x 1.75”W x 0.68” D (104.7mm H x 44.5mm W x 14.5mm D)
- Distance between holes (center to center): 1.25” (31.7mm)
Specifications
Brand
Temperature - NTC
- Measuring Range: -4° F to 158° F / -20° C to +70° C
- Accuracy: ± 1.4° F (-4° F to 32° F) / ± 0.8° C (-20° C to 0° C) | ± 0.9° C (32° F to 158.0° F) / ± 0.5° C (0° C to +70° C)
- Resolution: 0.1° F / 0.1° C
- Reaction Time: t90 = 30 min
- Measuring Rate: 1 min to 24 hr
Humidity - Capacitive
- Measuring Range: 0 to 100 %rH
- Accuracy: ± 1.8 %rH, +3 % of mv (at 77° F , 5 % to 80 %rH) / ± 1.8 %RH, +3 % of mv (at 25° C , 5 % to 80 %RH) | ± 0.03 %rF/K (at 32.0° F to 140° F) / ± 0.03 %RH/K (at 0° C to 60° C) | ± 1.00 %rF Hysterese (n2{#0}° t1 n3{#0} { %S3}) | ± 1 %rF/year Drift
- Resolution: 0.1 %rH
- Measuring Rate: 1 min to 24 hr
Delivery Scope
- Testo 184 G1 Data Logger, Wall Mount (with Lock and Keys) and Adhesive Installation Pad
Shock
- Measuring Range: 0 to 27 g | 0 to 265 m/s²
- Accuracy: ± (0.1 g + 5 % of mv) | ± 1 / 1 / 1 m/s²
- Resolution: 0.1 g | 1 m/s²
- Measuring Rate: 1 sec
Weight
- 2 oz. / 44 g
Dimensions
- 3.81 x 0.47 x 1.57 in. / 97 x 12 x 40 mm
Operating Temperature
- -4° to 158° F / -20° to +70° C
Housing
- ABS
Protection Class
- IP30
System Requirements
- Adobe Acrobat Reader
Product Colour
- White
Standards
- CE 2014/30/EU, DIN EN 61326-1:2013, DIN EN 50581:2013, CFR 21 Part 11 (in use with testo ComSoft CFR-Software), HACCP International
Certificate Type
- Certified by HACCP International
Channels
- 5 Internal
Operating Time
- Unlimited
Authorizations
- CE
Alarm Signal
- by LED and Display
Battery Type
- Lithium Battery CR2450, 3 V, Exchangeable
Battery Life
- 120 days (at +25° C and 15 min. Measurement Cycle)
Display Type
- Segment LCD
Display Size
- One-Line
Display Lighting
- No
Interface
- USB, NFC
Memory
- 64,000 Measuring Values (Temperature and Humidity)
- 1,000 Measurement Values (Shock)
Storage Temperature
- -67° F to 158° F / -55° C to +70° C
