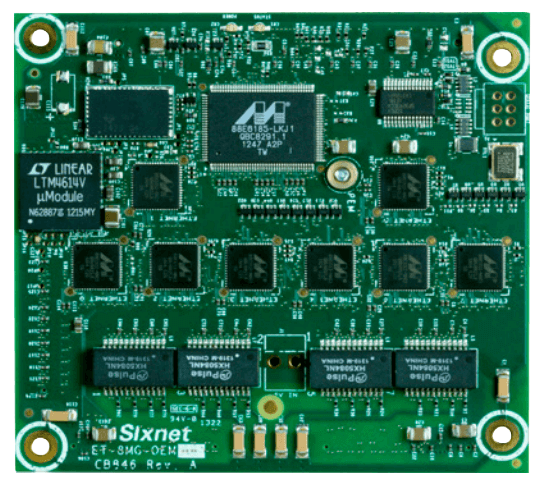

ET-8MG-OEM Industrial Ethernet Switch

Brand: Red Lion Controls

The Red Lion Sixnet ET-8MG-OEM is an 8 port industrial all-Gigabit Ethernet switch designed for OEM embedded applications.

This powerful board-level solution enables organizations to quickly create custom switches or use Ethernet to enable existing OEM systems.

With powerful software, our custom Commercial Off-The-Shelf (COTS) solution keeps industrial networks up and running even in the toughest conditions.
Features
  • Supports up to eight ports:
    • 10/100/1000BaseT Ethernet ports
    • 100Base SFF or SFP fiber ports
    • 1000Base SFF or SFP fiber ports
    • Combo (copper or fiber auto-detect)
  •  -40° to 75° C (-40° to 167° F) wide temperature operation
  • 5.0 Vdc power input
  • 10/100/1000BaseT(X), duplex and MDIX auto sensing
  • Security with HTTPS, SSL, SSH and TSL
  • Easy configuration via Web, Telnet or CLI
  • Broadcast and multicast storm protection
  • Fully managed features include:
    • SNMP v1, v2, v3
    • RSTP 802.1d, 802.1w, 802.1D
    • MSTP
    • IGMP v1, v2
    • Port mirroring
    • 802.1Q tag VLAN and port VLAN
    • 802.1p QoS, port QoS and DSCP
    • DHCP client/server

1 - 4 of 4 Part Numbers
ET-8MG-OEM-F
ET-8MG-OEM-F
  • Product - 8-Port Gigabit Managed Ethernet Switch Board Assembly
ET-8MG-OEM-HSK1
ET-8MG-OEM-HSK1
  • Product - Heat-Sink Kit for Conductive Cooling
ET-8MG-OEM-HSK2
ET-8MG-OEM-HSK2
  • Product - Heat-Sink Kit for Fan Cooling
ET-8MG-OEM-TF
ET-8MG-OEM-TF
  • Product - Test/Development Fixture
1 - 4 of 4 Part Numbers

Specifications

Applications

  • Alternative Energy
  • Military
  • Security Surveillance
  • Transportation
  • Utilities

Approvals & Certifications

  • IEEE 802.3
  • RoHS

Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Input

  • 16 W, Max.
  • 5 Vdc

Isolation

  • Ethernet Isolation: 1,500 Vrms 1 Minute

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Shock

  • IEC 68-2-6, 68-2-27 & 68-2-32 with Proper Mounting

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Vibration

  • IEC 68-2-6, 68-2-27 & 68-2-32 with Proper Mounting
