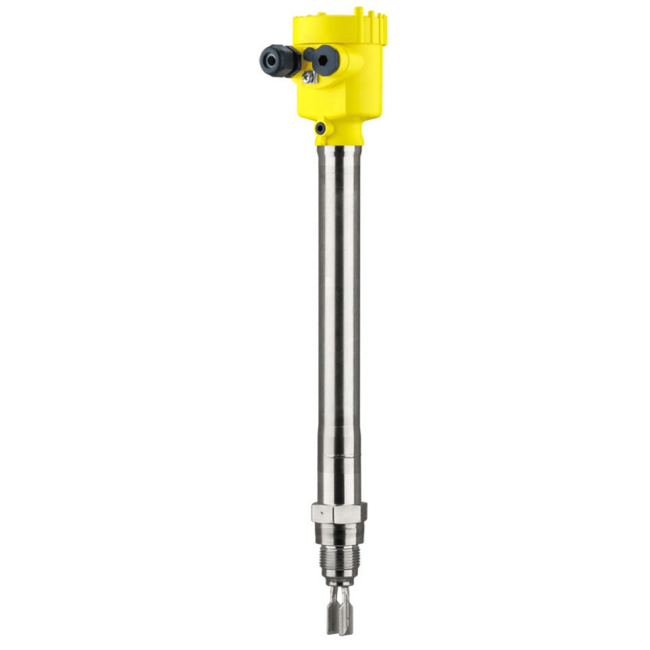

Vegaswing 66 Vibrating Level Switch
Brand: VEGAThe Vegaswing 66 is used as a universal vibrating level switch for all liquids.
In compact version or with tube extension, it detects reliably with millimetre accuracy the limit level.
The instrument can be used as empty or full detector in vessels, pipelines and steam generators.
The Vegaswing 66 offers maximum reliability and safety in a wide process temperature and process pressure range.
Features- Minimum Time and Cost Expenditure Due to Simple Setup without Medium
- Precise and Reliable Function Due to Product-Independent Switching Point
- Low maintenance Costs
Specifications
Brand
Ambient Temperature Range
- -40° to 70° C (-40° to 158° F)
Applications
- Can be used as Empty or Full Detector, as Approved Overfill Protection, Dry Run Protection or Pump Protection in Vessels & Pipelines
- Detects Reliably with Millimetre Accuracy the Limit Level
- Vibrating Level Switch for Liquids
Approvals & Certifications
- ABS
- ATEX
- CSA
- FM
- GL
- IEC
- LRS
BSP Connection
- G 1” Thread - Process Fitting
Cable Entry
- M20 x 1.5
Connection Material
- 316 Stainless Steel
- Inconel 718
Consumption
- 1 to 8 VA AC
- 1.5 W DC
Electrical Connectors
- Cable Gland
Enclosure, Body Material
- Aluminum
- Plastic
- Stainless Steel
Environmental Protection
- IP67
Flange Size - 1-1/2” (DN 40)
- 1-1/2” (DN 40) - Class 150 ASME
Flange Size - 2-1/2” (DN 65)
- 2-1/2” (DN 65) - Class 150 ASME
- 2-1/2” (DN 65) - PN 40
Flange Size - 2” (DN 50)
- 2” (DN 50) - Class 1500 ASME
- 2” (DN 50) - Class 300 ASME
- 2” (DN 50) - Class 600 ASME
- 2” (DN 50) - Class 900 ASME
- 2” (DN 50) - PN 40
Flange Size - 3” (DN 80)
- 3” (DN 80) - Class 150 ASME
- 3” (DN 80) - Class 300 ASME
- 3” (DN 80) - PN 40
Flange Size - 4” (DN 100)
- 4” (DN 100) - Class 300 ASME
- 4” (DN 100) - PN 16
- 4” (DN 100) - PN 40
Flange Size - 5” (DN 125)
- 5” (DN 125) - PN 40
Flange Size - 6” (DN 150)
- 6” (DN 150) - PN 16
- 6” (DN 150) - PN 40
Flange Type
- Raised Face (RF)
Frequency
- 50/60 Hz
Indication
- Green Indication Light - Operating Status
- Red - Fault Indication
- Yellow Indication Light - Switching Status
Length
- 40 mm - Tuning Fork
NPT Connection
- 1” NPT - Process Fitting
- 1/2” NPT
Operating Voltages
- 20-253 Vac
- 20-72 Vdc
Output Format
- Relay (DPDT)
- Transistor Output
Power Requirement
- 1 A DC Switching Current
- 10 µA to 5 A AC - Switching Current
- 10 mV Min. Switching Voltage
- 253 Vac, Max.
- 253 Vdc - Switching Voltage
- 40 W DC - Breaking Capacity
- 50 mW to 1,250 VA AC - Breaking Capacity
Pressure Range
- psig: -14.5 to 2,320 (kPa: -100 to 16,000, bar: -1 to 160)
Process Temperature
- -196° to 450° C (-320° to 842° F)
Switch Type
- DPDT - Relay Output
Version / Leadwires
- 2-Wire
Wetted Materials
- 316L Stainless Steel
- Alloy C-22 (2.4602)
- Inconel 718
