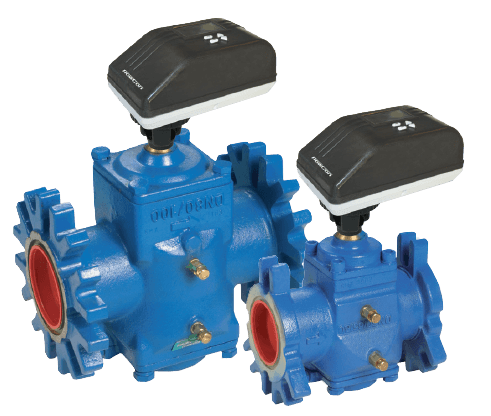

FlowCon SM Control Valve

Brand: Valve Solutions

The SM Series are self balancing dynamic flow control valves that are pressure independent, two-way, modulating to accept digital or Analog input signals.

The valves accept 2-10 Vdc, 4-20mA, digital 2-position or digital 3-point floating input signals.

Each valve has an adjustable maximum flow rate setting to enable flow limitation and balancing to the coils or zones that the valves are controlling.

All SM actuators are microprocessor based with a self-calibrating feature.

The SM valve is of the wafer style for fitting between flanges.

They are available in three different valve bodies for flange connections.

Specifications

Ambient Temperature Range

  • -10° to 50° C (15° to 122° F)

Approvals & Certifications

  • ANSI
  • ISO
  • UL

Calibration

  • Automatic Calibration at Startup

Diaphragm Material

  • Hydrogenated Acrylonitrile-Butadiene-Rubber

Differential Pressure

  • psid: 58 (kPa: 400, bar: 4,000)

Electrical Connectors

  • 3.28 feet for BACnet Versions Another 3-Wires 22 AWG Halogen Free Cable
  • 5-Wires 22 AWG Halogen Free Cable

Enclosure, Body Material

  • Ductile Iron ASTM A536-65T, Class 60-45-18
  • Plastic, UL 94 V0-Rated

Environmental Protection

  • IP54 Including Up-Side-Down Mounting

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#
  • 2-1/2” (DN 65) - 300#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 300#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#
  • 3” (DN 80) - 300#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#
  • 4” (DN 100) - 300#

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#
  • 5” (DN 125) - 300#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#
  • 6” (DN 150) - 300#

Flow Rate

  • 23.4 to 468 gpm (5.328 to 106.2 m³/hour)

Frequency

  • 50/60 Hz

Humidity

  • 5 % to 95 % Relative Humidity, Non-Condensing

Input

  • 0-10 Vdc
  • 0-20 mA
  • 2-10 Vdc
  • 4-20 mA

Internal Part Material

  • Stainless Steel

Maximum System Pressure

  • psi: 87 (kPa: 600, bar: 6)

O-Ring Material

  • Ethylene Propylene (EPR)

Output

  • 0-10 Vdc
  • 2-10 Vdc
  • 4-20 mA

Power Requirement

  • 12 Vac

Pressure Rating

  • psi: 580 (kPa: 4,000, bar: 40)

Process Temperature

  • -20° to 120° C (-4° to 248° F)

Rotation

  • Bi-Directional

Supply Voltage

  • 24 Vac/dc

Turn-On Time

  • 190 seconds (From Closed to Fully Open Valve)
