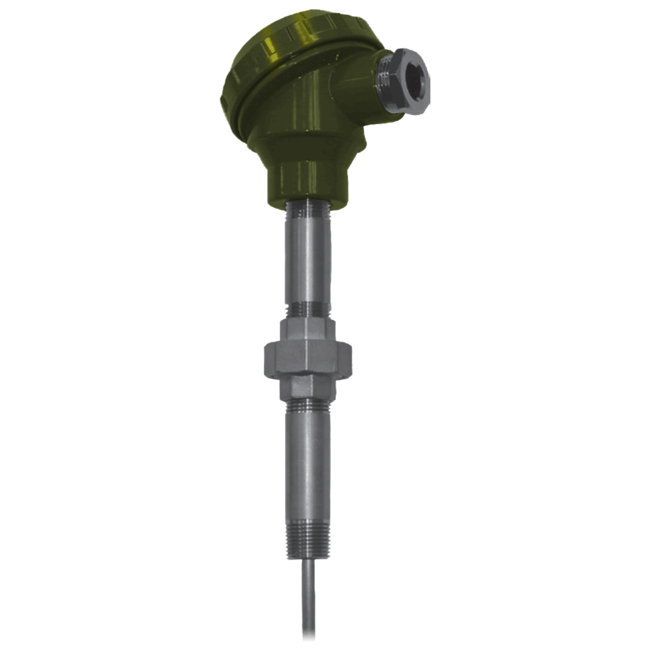

TER Industrial RTD
Brand: Winters Instruments
Features
- High accuracy Platinum element (Pt100)
- Light weight aluminum connection enclosure
- 2 wire 4-20mA output signal standard
- 316 SS sheath material
- IP54 or ATEX rated enclosure available
- Multi-point and surface mount sensors available
- Available with or without 316 SS thermowells
Specifications
Brand
Accuracy
- ± 0.15° C (± 0.27° F) at 0° C (32° F)
Approvals & Certifications
- ATEX Ia
Conduit Connection
- 1/2” NPT Female
Element
- Platinum 100 ohm Class A
Enclosure, Body Material
- Light Weight Aluminum Connection Enclosure
Environmental Protection
- IP54
Head Material
- Aluminum
- Stainless Steel
Materials of Construction
- Extension & Sheath Material: 316 Stainless Steel (SST)
- Extension Material: Galvanized Carbon Steel
NPT Connection
- 1/2” NPT Male
- 3/4” NPT Male
Output
- 2-Wire 4-20 mA
Pressure Rating
- psi: 7,000 (kPa: 48,263, bar: 482.6) - Max.
RTD Type
- Pt100
Sensor, Probe Length
- Sensor: 4 to 16” (100 to 400 mm)
Sensor, Probe Type
- RTD
Temperature Range
- -200° to 550° C (-328° to 1,022° F)
Thermowell
- 316 Stainless Steel (Threaded, Flanged & Weld-In)
- Refineries
- Petrochemical Plants
- Gas-to-Liquid (GTL) Processes
- Storage Tanks
- Power Plants
- Paper Production Plants
- Kilns
- Food & Beverage, etc
