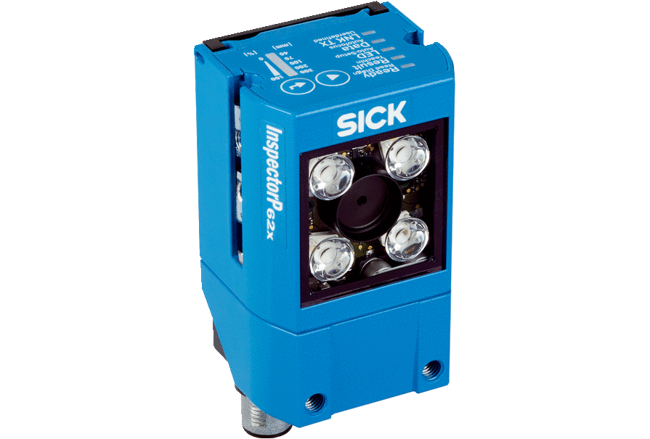

InspectorP62x 2D Machine Vision
Brand: Sick AGThe InspectorP62x is an industrial all-in-one vision sensor that is easy to use, compact and versatile. The integrated system of teach auto focus optics and flexible illumination provides high-quality images right out of the box.
The included and pre-installed Quality Inspection SensorApp welcomes both expert and non-expert users to configure the sensor in no time using an accessible and intuitive web user interface.
As it is based on SICK AppSpace, the InspectorP62x allows for further extension or replacement of functionality through a growing collection of SICK Nova Tools or SensorApps from SICK AppPool, or through custom development if needed.
At a glance
- Quality Inspection SensorApp included and pre-installed
- Compact, rugged IP65 housing with swivel connector
- Powerful LEDs, high-quality lens, and teach auto focus
- Large variety of communication interfaces
- Runs compatible SICK AppSpace SensorApps
- Programmable with SICK AppStudio
- Ready to solve machine vision tasks right out of the box
- Fits in small spaces and tight angles
- All-in-one design for simple stand-alone operation
- Industrial communication and digital IOs allow for flexible system integration
- Easy start for anyone with the included and pre-installed Quality Inspection SensorApp
- Addition or extension of tool functionality for customized solutions with SICK Nova
- Exceptional programming flexibility in SICK AppSpace or HALCON
- Deep learning available as licensed option
1 - 3 of 3 Part Numbers
1110847
- Internal Lighting - Red, Blue
- Lens - 9.6 mm, Integrated
- Type - V2D621P-2MSFBB5
1110848
- Internal Lighting - Red, Blue
- Lens - 17.1 mm, Integrated
- Working Distance - 300 to 1,500 mm
- Type - V2D621P-2MSFFB5
1110849
- Internal Lighting - Infrared
- Lens - 17.1 mm, Integrated
- Working Distance - 300 to 1,500 mm
- Type - V2D621P-2MDFGB5
1 - 3 of 3 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- EAC
Sensor
- CMOS Matrix Sensor, Grayscale Values
Sensor Resolution
- 1,280 x 1,024 pixels (1.3 Mpixel)
Light Source
- Adjustment Aid Laser, Visible, Red, 630 to 680 nm
- Feedback Spot LED, Visible, Green, 525 nm, ± 15 nm Laser, Visible, Red, 630 to 680 nm
- Internal Lighting LED, Visible, Blue, 470 nm, ± 15 nm LED, Visible, Green, 525 nm, ± 15 nm
- Internal Lighting LED, Visible, Red, 617 nm, ± 15 nm LED, Invisible, Infrared, 850 nm, ± 25 nm
Optical Focus
- Adjustable Focus (Electric)
Focal Length
- 9.6 mm
- 17.1 mm
Lens
- Integrated
Working Distance
- 70 to 1,500 mm
Control Element
- 2 Buttons
Communication Interface
- EtherCAT, Optional Over External Fieldbus Module
- EtherNet/IP
- HTTP CAN, SICK CAN Sensor Network (Master/Slave)
- Ethernet, TCP/IP, FTP (Not Yet Available in the Pre-installed Quality Inspection SensorApp)
- Serial, RS-232, RS-422
- PROFINET, PROFINET Single Port
- PROFIBUS DP
Configuration Software
- Web GUI (SensorApp Configuration), SICK AppStudio (Programming)
Dimensions
- 71 mm x 43 mm x 35.6 mm
SensorApp for quality inspection included, e.g.:
- Inline quality control in the production of parts, assemblies or products
- Inspection and measurement of details
Other SensorApps, systems or custom development for additional tasks, e.g.:
- Fine positioning of stacker cranes
- OCR, OCV and code reading
