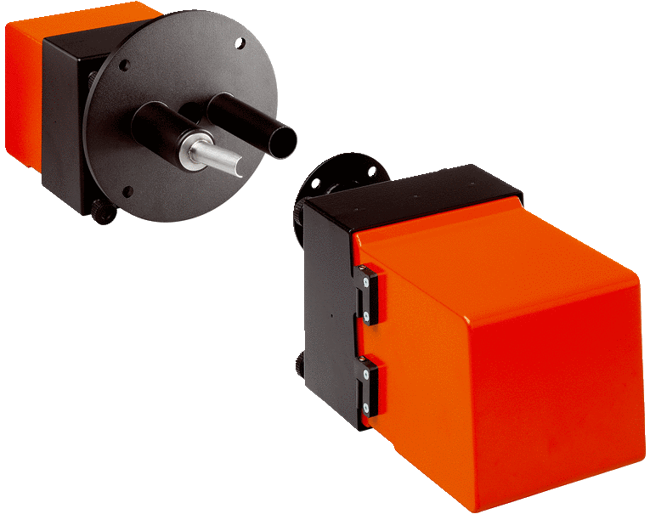

DUSTHUNTER C200 Transmittance Dust Measuring Device
Brand: Sick AG
The DUSTHUNTER C200 is a type-approved measuring device which combines the advantages of the measuring principles of transmittance and forward scattered light.
It is, therefore, ideal for measuring very low to high dust concentrations.
Automatic self-alignment optimizes the position of the measuring beam and prevents incorrect measurement.
An automated check of the zero and reference point as well as a contamination check are on board in the device.
Features- Suitable for sharply fluctuating dust concentrations
- Redundant measurement for reliable application
- Low-maintenance thanks to self-monitoring
- Equipped for limit values that will become smaller in the future
- Tested for suitability according to EN 15267
Specifications
Brand
Certifications & Approvals
- CE
Measuring Range
- Dust Concentration (Transmittance): 0 to 200 mg/m³ / 0 to 10,000 mg/m³
- Dust Concentration (Scattered Light): 0 to 5 mg/m³ / 0 to 200 mg/m³
- Extinction: 0 to 0.045 / 0 to 2
- Relative Opacity: 0 to 10 % / 0 to 100 %
- Opacity: 0 to 10 % / 0 to 100 %
- Transmittance: 100 to 90 % / 100 to 0 %
Response Time
- 1 to 600 s
Accuracy
- ± 2 %
Process Temperature
- -40° to 300° C
Process Pressure
- -50 to 30 hPa
Process Gas Humidity
- Non-Condensing
Ambient Temperature
- -40° to 60° C
Power Supply
- 90-250 Vac, 47-63 Hz
- 24 Vdc
Duct Diameter
- 0.5 to 3 m
Indication
- LC Display
- Status LEDs: “Power,” “Failure,” and “Maintenance Request”
Gas Flow Rate
- 38 to 63 m³/h
- Emissions Monitoring at Power Plants And Waste Incineration Plants
- Monitoring of Filter Systems
- Measurement of Dust Concentration in Exhaust Gas And Exhaust Air Ducts Upstream And Downstream of Filters
