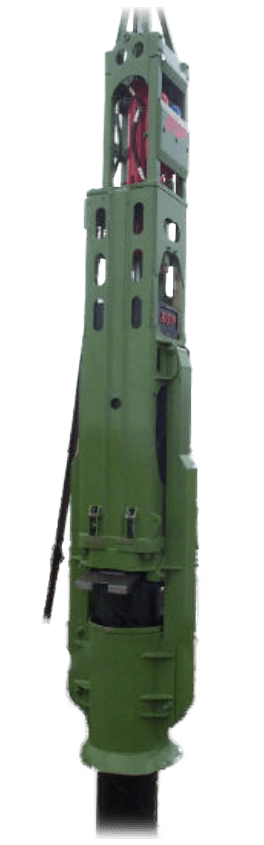

CX-50 Hydraulic Hammer
Brand: PACO Ventures, LLCThe CX range of piling hammers is designed for driving a wide variety of bearing and sheet piles.
Available with legs and inserts or pile sleeves for use freely suspended, or with back guides for operating from a piling mast.
The CX range have total control of hammer stroke and blow rate, allows precise matching of energy to suit the pile driving requirements, and is highly efficient hydraulic system gives low energy loss and low running cost.
Features- Total control of hammer stroke and blow rate.
- Allows precise matching of energy to pile driving requirements.
- Digital readout of hammer performance in choice of units - (Stroke or Energy)
- Simple, fast dolly changing Cylinder and drop weight connection easily accessible
- Cage and drop weight design gives short overall hammer length
- Available with BSP Hydropacks which conform to latest EC emissions regulations
- Can be operated directly from Hydraulic crane or excavator bases.
Specifications
Brand
Ram Mass
- 8,800 lb (3,992 kgm)
Energy Range
- 35,000 ft-lb (47 kNm)
Blow Rate
- 50 bpm
Operating Pressure
- 3,000 psi (207 bar)
Hydraulic Flow Required
- 42 gpm (159 Lpm)
Hammer Weight
- 15,330 lb (6,954 kg)
Hammer Length
- 15'-2" (4,623 mm)
