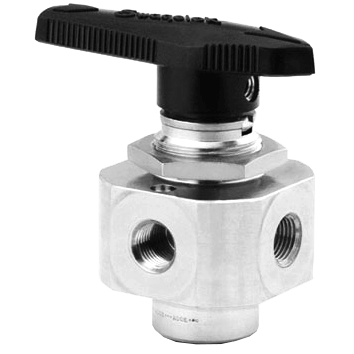

5-Way 40 Series
Brand: Swagelok Company
Features
- Style: One-Piece Instrumentation Ball Valves
- Valve Series: 5-Way, 43Z, 45Z
- Body Material: Brass, Alloy 400
- Packing Material: PTFE
- End Connections: 1/16" to 1/2"
- Maximum Pressure Rating: 2,500 psig, 17,237 kPa 172.4 bar
- Optional: Flow Path and Vent Port
Specifications
Brand
Direct Mount
- No
Enclosure, Body Material
- Alloy 400 or Monel
- Brass
Flow Rate
- 0.05 to 12 Cv
NPT Connection
- 1/2” NPT Female
- 1/8” NPT Female
Options
- Flow Paths
- Production Test
- Vent Port
Packing Material
- PTFE
Pressure Rating
- bar: 34.47 to 172.4
- kPa: 3,447 to 17,237
- psig: 500 to 2,500
Process Temperature
- 10° to 65° C (50° to 150° F)
Tube Connection
- 1/8” Tube
Valve Type
- Manual
