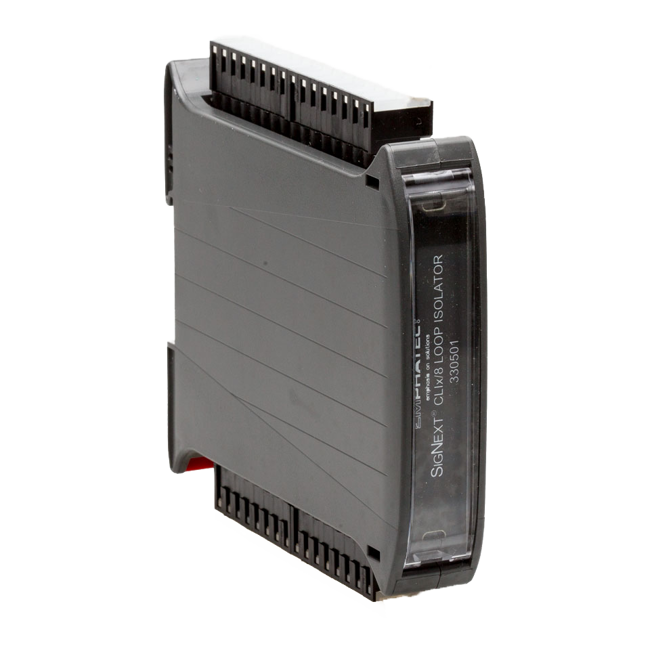

SIGNEXT-CLIx/8/22.5 8-Channel Loop Isolator

Brand: Emphatec
Add Product to My Catalog

The SIGNEXT-CLIx/8/22.5 is the perfect solution when panel space is limited. The compact packaging results is a per channel width of just over 2.8 mm and plug and socket connections make installation easy. 3,000 V of isolation between channels and between input-output is more than enough to eliminate ground loops.

Transformer coupling means the output is powered from the input - no power supply is required in the output circuit. It provides fast response time and excellent accuracy.
Features
  • Requires 22.5 mm of DIN rail; just 2.8 mm per channel

  • Loop powered inputs and outputs

  • Plug and socket connections

    • Specifications

    Brand

    Accuracy

    • 0.03 % at 25° C (77° F)
    • 0.1 % at 25° C (77° F)

    Approvals & Certifications

    • UL

    Electrical Connectors

    • Plug & Socket Connector

    Input

    • 4-20 mA

    Isolation

    • 3 kV for 1 Minute Input-Output/Input-Input Transformer Coupling

    Load Resistance

    • Input: 250 ohms

    Mounting

    • 32 mm & 35 mm DIN Rails

    Operating Temperature

    • -20° to 40° C (-4° to 104° F)

    Output

    • 4-20 mA

    Output Load

    • 250 ohms, Max.

    Response Time

    • 20 milliseconds

    Termination

    • Input: 26 to 12 AWG

    Torque

    • 0.5 to 0.6 Nm

    Voltage Drop

    • Input: 2.4 V at 4 mA
    • Input: 8.7 V at 20 mA
