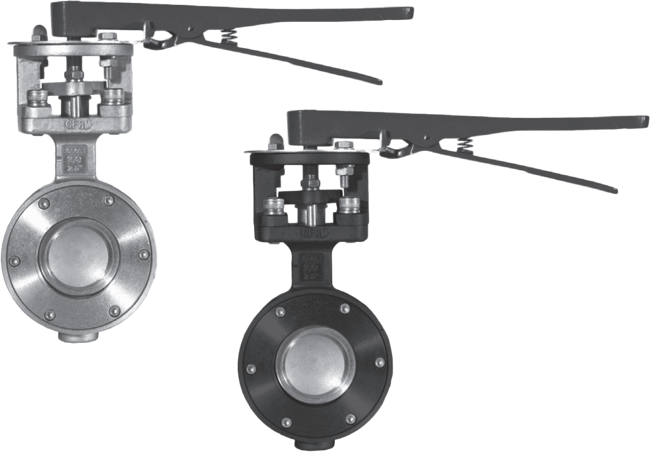

Series 8100/9100 High Performance Butterfly Valve
Brand: Bonomi North AmericaBonomi North America Series 8100/9100, double offset design high performance Wafer style butterfly valves, in sizes 2” to 12” are ANSI class 150, and come in both carbon steel and stainless steel versions.
The carbon steel models have ASTM A216 WCB bodies and ASTM A351 CF8M discs. The stainless Steel models come with ASTM A351 CF8M bodies and discs.
The stem is made from 17-4 PH stainless for extreme hardness, disc support, and is blowout proof. The seat is made from carbon graphite filled PTFE for higher temperature and pressure performance and consistency.
The ISO 5211 mounting pad and square stem allow for direct mounting of actuation.
The 8100/9100 Series are designed to meet or exceed the following standards: API 598 testing; designed to API 609, ANSI 16.5, MSS SP-25 marking; MSS SP-61 testing; and MSS SP-68 design.
Features- ISO 5211 Pad and Stem for Direct Mounting
- Compact Design, Easy Access to Packing
- Replaceable Seat Design
- Multiple V-Ring Stem Packing
- Reliable and Consistent Torques
- Optional Metal to Metal and PTFE Seat Design
- 14” to 24” Sizes Available Upon Request
Specifications
Brand
Size
- 14" to 24"
Body Material
- Carbon Steel
- Stainless Steel
Seat Material
- Metal
- Carbon Filled PTFE
- Water, Chilled Water, Oil, Gas, Steam, Chemical and Petrochemical Applications
