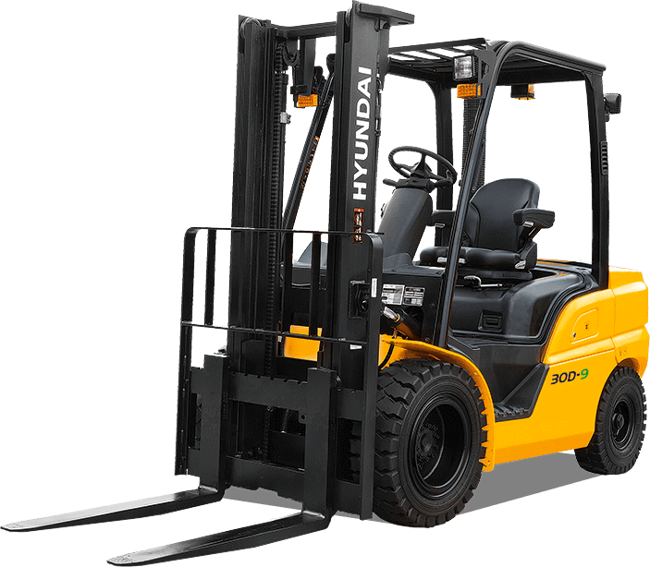

Hyundai Diesel 25, 30, 33D, 35DA-9
Brand: Hyundai Construction Equipment Americas, IncHyundai introduces a new line of 9-series diesel forklift trucks. The newly designed four-wheel counterbalance trucks provide operator comfort, increased productivity and easy maintenance.
Features- Maximum performance
- Spacious operator's cab
- Switch type parking brake
- 5.6 inch LCD color monitor
- Truck inclination warning system
- OPSS System for safe operation
- Easy serviceability
- Max speed limit function
- HAC (Hillstart-Assistance Control)
- Password starting system
- Auto fork leveling system (Optional)
- Load weight indicator
Specifications
Manufacturer
- Hyundai
Manufacturer’s Model Designation
- 25D-9
- 30D-9
- 33D-9
- 35DA-9
Drive
- DIESEL
Type of Operation
- seated
Load Capacity / Rated Load
- 24
Load Center Distance
- 18
Load Distance, Center of Drive axle to Fork
- 18.4
Wheelbase
- 65
- 67
Service Weight
- 25D-9: 8,572
- 30D-9: 9,440
- 33D-9: 10,055
- 10,357: 35DA-9
Axle Loading, Loaded Front/Rear (lbs)
- 25D-9: 12273 / 1812
- 30D-9: 14054 / 1997
- 33D-9: 15006 / 2324
- 35DA-9: 15678 / 2425
Axle Loading, Unloaded Front/Rear (lbs)
- 25D-9: 3527 / 5044
- 30D-9: 3675 / 5765
- 33D-9: 3589 / 6466
- 35DA-9: 3541 / 6817
Engine Manufacturer / Type
- Kubota V3307
Engine Power acc. to ISO 1585 hp/rpm
- 67 / 2300
