Emerson KTM Ball Valve, EB588 Series

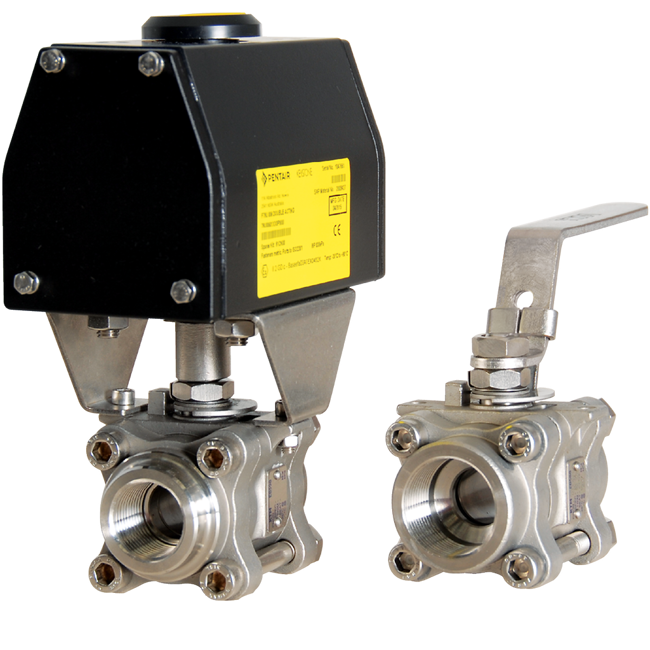

Series EB588 Ball Valves

Brand: KTM
Add Product to My Catalog

3 piece, reduced bore, floating ball valve, suitable for a wide range of arduous applications for the oil and gas, petrochemical and process industries, where fire-safe design is mandatory.
Features
  • Reduced bore design.
  • 100% of valves are pressure tested..
  • Certificate of compliance to EN 10204 / ISO 10474 Type 3.1 (DIN 50 049) are supplied as standard..
  • Winged body design allows the mounting of actuators without having to remove the body bolts and maintain seal integrity..
  • Three piece body allows swing out center section for fast and easy maintenance..
  • Integral padlocking as standard on manual valves..
  • Blow-out proof stem.
  • Vented ball equalizes body cavity pressure in open position and prevents seat damage..
  • Vented seats equalizes pressure over upstream seat when used in high differential pressure applications and thereby reduces operating torque..
  • Fully machined carbon PTFE seats are standard ensuring bubble-tight shut-off..
  • A choice of seating material options are available..
  • Carbon steel or stainless steel body and end connections available..

Specifications

Brand

Approvals & Certifications

  • NACE, PED, Fire Safe, CRN, CE

Body Design

  • Side Entry

End Connection

  • Butt Weld, Socket Weld, Threaded

Material

  • Carbon Steel, 316L Stainless Steel, 316 Stainless Steel

Pressure Class

  • ASME

Process Connection Type

  • Weld End, SWE, NPT, BSP

Seat / Seal Type

  • Ball, Soft Seal

Shutoff Class

  • Zero Leakage, API 598

Standards

  • ASME B16.34, API 608

Style

  • Emergency Shutoff Valves

Valve Size

  • NPS 3/4 / DN 20, NPS 2 / DN 50, NPS 1-1/4 / DN 32, NPS 1-1/2 / DN 40, NPS 1/2 / DN 15, NPS 1 / DN 25

Valve Size Standard

  • NPS, DN

Valve Type

  • Ball Valve, Floating Ball Valve

  • Boiler, Storage & Distribution
  • Separation
  • Gas Gathering & Compression
  • Fuel Gas
  • FPSO
  • Desalination
  • Cogeneration
  • Burner Management Systems
  • Boilers
  • City Gates & District Stations

Documentation

Data Sheets

Brochure
