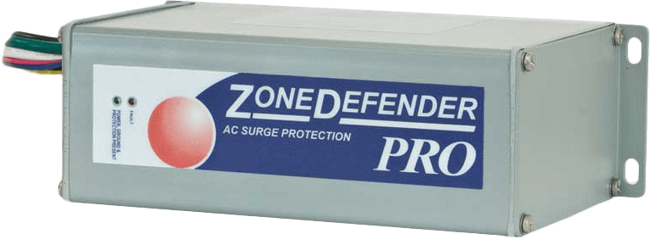

ZoneDefender PRO Range Power Surge Protection
Brand: MTL InstrumentsThe ZoneDefender PRO range is a versatile, high performance surge protector designed for use in a wide variety of industrial, institutional and commercial applications.
The ZoneDefender PRO is the most compact, powerful, feature-rich surge protector on the market today.
State-of-the-art circuitry protects equipment from high frequency noise as well as from damaging electrical transients and high-energy disturbances.
In addition, the ZoneDefender PRO range offers cost-effective high capacity protection along with application versatility; features which make the range the ultimate surge protection solution.
Features- 80kA to 240kA Surge Current Rating per Phase
- Includes High-performance EMI/RFI Filtering
- LED Status Indication via Solid State Diagnostics Plus Remote Indication Contacts
- Built-in Audible Alarm
- Thermal and Short Circuit Fusing
- Short Circuit Current Rating: 200k AIC
- UL 1449 3rd Edition Listed
- 10 Year Product Warranty
- UL1449 Type 2 SPD, In=20kA
Specifications
Brand
Model
- 80 kA Versions
- 100 kA Versions
- 120 kA Versions
- 160 kA Versions
- 200 kA Versions
- 240 kA Versions
Working Voltage
- 120/240
- 120/208
- 277/480
- 220/380
- 240/415
UL1449 VPR 3rd Edition
- 500
- 1200
- 500/1200
Phase Types
- Split Phase 3-wire
- three-phase 4-wire WYE
- three-phase 4-wire Delta
