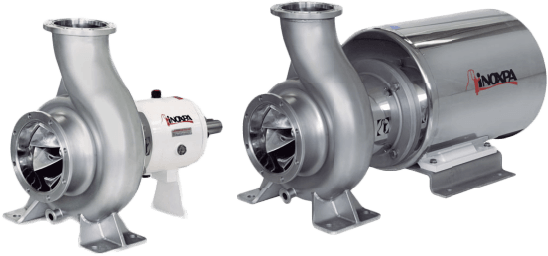

Hygienic DIN Centrifugal Pump

Brand: Inoxpa
Add Product to My Catalog

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

This pump is not reversible by a simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Features
  • Casing with volute manufactured with 8 mm cold-formed plate.
  • Aseptic flanges according to DIN 11864-2.
  • Double curvature impeller with blades on the rear side to reduce the axial thrust.
  • Axial adjustment of the impeller (bare shaft version).
  • Hygienic mechanical seal.
  • Fully drainable pump.
  • Designed according to the EHEDG standards.
  • IEC B3 motors (B35 close-coupled constructions), IP 55, F-class insulation.

Specifications

Brand

Maximum Flow

  • 1000 m³/h
  • 4403 US GPM

Maximum Differential Head

  • 90 mwc
  • 295 ft

Maximum Operating Pressure

  • 10 bar
  • 295 ft

Maximum Working Temperature

  • -10° C to +120° C (EPDM
  • 14° F to 248° F
  • +140° C (SIP, Max. 30 min)
  • 284° F

Maximum Speed

  • 1800 rpm
  • 3600 rpm (model 125-100-250/2)

Documentation

Data Sheet
