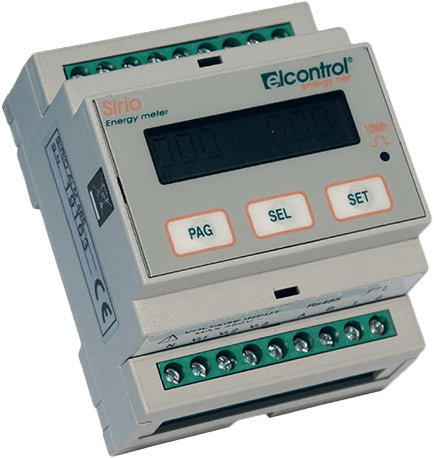

Sirio Analyzer
Brand: Elcontrol Energy Net S.R.L.Sirio is a low-cost multi-function meter in a 4 DIN module, ideal for measurement and display of the most important electrical parameters.
Sirio can be installed in single phase and three-phase unbalanced systems in a triangle or in a star layout with sturdy 4 mm2 terminals for measuring the current and voltage.
It monts an 8 digits LCD display.
It displays 7 major measures (True RMS) and more than 40 RMS are available on the integrated RS485 serial port.
Siri0 include two relay outputs, user-configurable for alarms, pulse or remote control.
All parameters are configurable from instrument keyboard already installed.
Features- More than 40 sizes available on the net
- RS485: Serial port multi-protocol RS485 which supports the protocols Modbus RTU (BCD and IEEE) and Modbus ASCII
- Relay outputs: can be set for either alarm signaling, pulses generation or to be remotely controlled via the RS485 port.
- The relays are calibrated by a maximum and minimum threshold; They can be set in both the hysteresis and the delay time.
- Function “” Alarm “” associable with different sizes to be used as a disengagement function for external MCB.
- Mode “” Pulse “” relay that allows you to generate pulses proportional the associated measure.
- Mode “” Remote Control “” to decide the position of the relays via an external master device (PLC, PC, etc) through the RS485 line. Very convenient for the application of the remote load control.
Specifications
Dimensions
- 70 x 58 x 90 mm
Power Supply
- 230 o 115 Vac 10 %, 35÷400 Hz
Consumption
- 3 VA
Display
- LCD 128 segments
Weight
- 400 g
Wires Connection
- Screw Terminals
Communication
- RS-485, Modbus RTU (BCD ed IEEE ) e Modbus ASCII
Working Temperatures
- from -10° to +60° C
Umidity
- Maximum 80 %
IP Protection
- Device IP20
- Front Panel IP60
