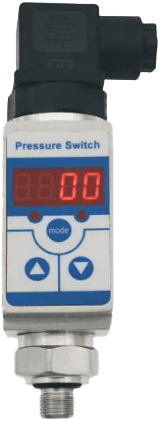

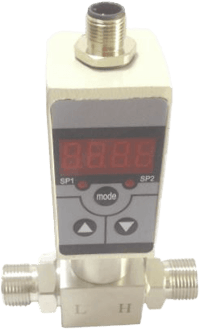

Pressure Switch With Digital Display

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

Digital pressure controller is a pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

It is widely used in water and electricity industry, petroleum industry, chemical industry etc.

UPS2 pressure switch with digital display is pressure measurement & control product with intelligent digital display, it is combined the functions of pressure measurement, display, output and control.

This product is made with entire electronic structure, and built isolated-membrane pressure sensor in its front end.

Its output signal is amplified through high accuracy & low temperature swift amplifier, then is input high accuracy A/D converter, and processed by microprocessor, the processed signal controls two-way switch, to realize the pressure measurement and control for systems.

The use of UPS2 pressure switch is very flexible. UPS2's operation and adjustment is simple and easy, meanwhile, this product also has good reliability and safety.
Features
  • 4 digit LED Switch value can be set from zero to full scale freely
  • The outer case is equipped with light emitting diode (LED), is easy for observing operation
  • Operation is easy; the pressed key is for adjustment and parameters setting on the spot
  • Two-way switch output, 1.2 A loading capacity
  • 4~20 mA analog output (optional)

View_Details

Specifications

Brand

Pressure Medium

  • Gas or Liquid Compatible with Stainless Steel

Pressure Ranges

  • 0 ~ 1 to 600 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA (Option)

Control Accuracy

  • 0.5 % Full Scale (Standard)

Display Accuracy

  • 0.1 % Full Scale

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 18 ~ 32 Vdc

Ambient Temperature Range

  • -30° C ~ +70° C

Media Temperature Range

  • -40° C ~ +85° C

Storage Temperature Range

  • -20° C ~ +100° C

Service Life of Switch

  • > 1 million times

Power Consumption

  • < 3 W

Load Capacity

  • < 24 V, 1.2 A

Process Connection

  • G 1/4 or Others

Electrical Connection

  • Aviation Connectors or Others

Material of Wetted Part

  • 1Cr18Ni9Ti

Relative Humidity

  • 0 ~ 80 %

Protection

  • IP65

  • Water and Electricity Industry
  • Petroleum Industry
  • Chemical Industry
  • Machinery Industry
  • For the Pressure Measurement and Control of Many kinds of Fluids

Documentation

Data Sheets
