BAM Breathing Air Purifiers (flow rates up to 1426m³/H @ 7 barg)

BAM Breathing Air Purifiers (Flow Rates up to 1426m³/H @ 7 barg)

Brand: Domnick Hunter - by Parker
Add Product to My Catalog

Hazardous vapours, gases and fumes can be released at various stages within manufacturing applications. Whether the risk is from noxious fumes, particulate or contamination from a compressed air system, effective respiratory protection for the user is essential.

In compressed air fed systems, ambient air is drawn into the compressor, therefore any contaminants present in the ambient air, plus those introduced by the compressor itself, will be present unless removed by a purification system.

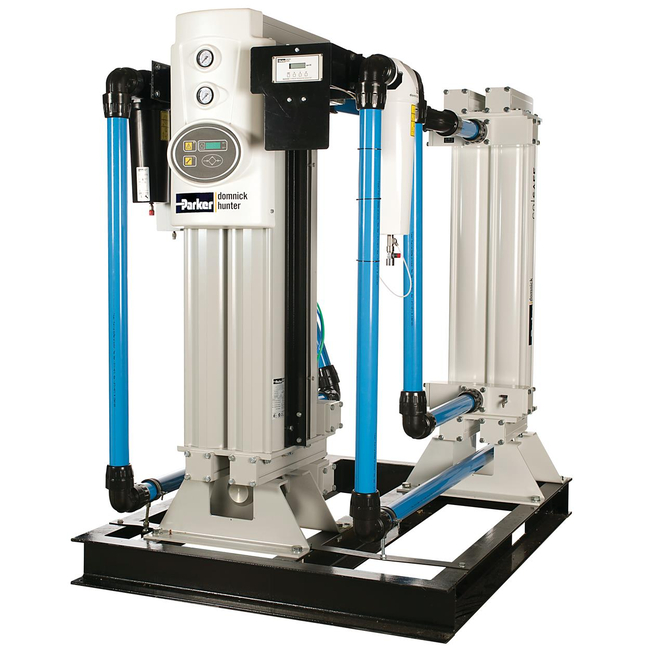

The Parker domnick hunter BAM breathing air purifiers consist of six purification stages mounted on a portable skid for high-capacity multiple personnel breathing air applications.

At the inlet, a water separator removes bulk water, followed immediately by a high efficiency coalescing filter to reduce oil and water content, an activated carbon filter then removes oil vapour and odours.

The fourth stage of purification is an adsorption dryer that reduces the water vapour content of the compressed air (to -40°C pdp) and CO2 to below the legal permissible limits.

Downstream of the adsorption dryer, a catalyst converts carbon monoxide to carbon dioxide, again, to below the legal limits. A final dust filter captures any particulates carried over from the adsorption materials.
Features
  • 6 Purification stages
  • CO monitor fitted as standard
  • CO and CO2 reduction to below legal permissible limits
  • Air quality 3rd party independently certified, better than the European Pharmacopoeia standard
  • Energy management system fitted as standard
  • Modular, space saving design
  • Use with any compressed air supply

View_Details

Specifications

Brand

Depth (inch)

  • 65 to 77

Depth (mm)

  • 1665 to 1950

Height (inch)

  • 71 to 80

Height (mm)

  • 1797 to 2042

Maximum Flow Rate (cfm)

  • 840 @ 100 psig

Maximum Operating Pressure (barg)

  • 13

Maximum Operating Pressure (psig)

  • 188.5

Maximum Operating Temperature (°C)

  • 35° C

Maximum Operating Temperature (°F)

  • 86° F

Minimum Operating Pressure (barg)

  • 4

Minimum Operating Pressure (psig)

  • 58

Minimum Operating Temperature (°C)

  • 5° C

Minimum Operating Temperature (°F)

  • 41° F

Port Connection (inch)

  • 2” to 2-1/2” (Inlet) 2” to 2-1/2” (Outlet)

Pre-installed Optional Accessories

  • Energy Management System Fitted as Standard

Weight (kg)

  • 600 to 1400

Weight (Lbs)

  • 1323 to 3086

Width (inch)

  • 50

Width (mm)

  • 1260

Documentation

Product Manuals
