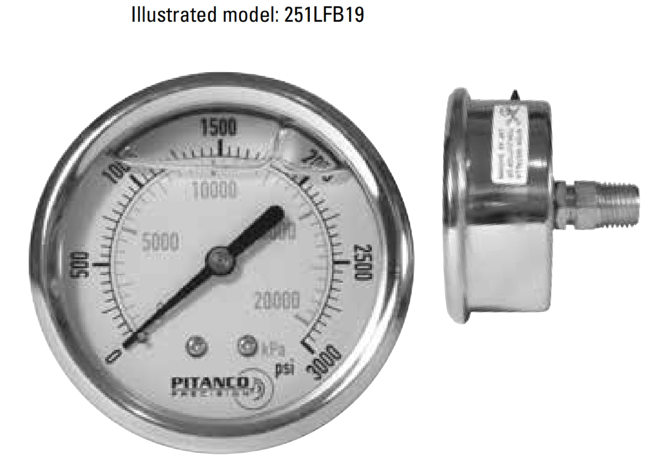

Model LFB Glycerin Filled Industrial Pressure Gauge
Brand: Pitanco Precision
Competitively priced gauge for multiple use: industrial, plumbing, HVAC, hydraulic, pneumatic, compressors, pumps, pools, etc.
Specifications
Brand
Case
- 304 Stainless Steel
Dial
- White Aluminum with psi Graduations in Black and kPA Graduations in Blue
Ring
- 304 Stainless Steel Hermetically Sealed
- 304 Stainless Steel Bayonet Style
Lens
- Polycarbonate
Pointer
- Anodized Black Aluminum
Connection
- 1-1/2” (40 mm) 1/8” NPTM Bottom or Center Back
- 2-1/2” (63 mm) 1/4 NPTM Bottom or Center Back
- 4” (100 mm) 1/4” NPTM Bottom or Lower Back
Wetted Parts
- Brass
Bourdon Tube
- Phosphor Bronze
Maximum Process & Ambient Temperatures
- -40° to 150° F / -40° to 65° C dry
- 32° to 160° F / 0° to 70° C glycerin filled
Operating Pressure
- Maximum 75 % of Full Scale Value
Overpressure Limit
- 25 % Over Full Scale Value
Accuracy
- ASME B40.100 (B40.1), Grade B ± 2 %
