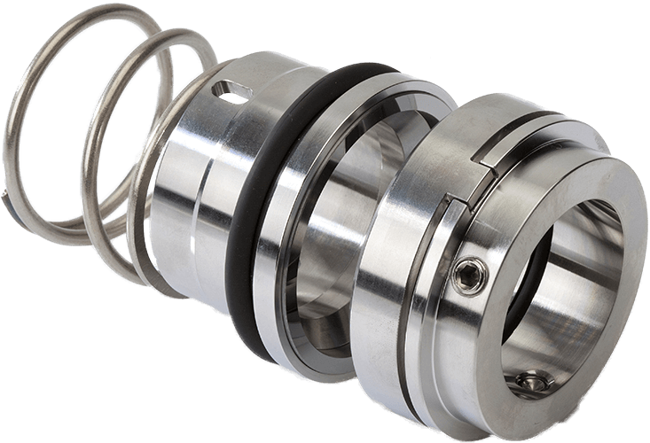

LATTYseal B 10712 REP/REV - RIP/RIV Single Balanced Mechanical Seal
Brand: Latty International S.A.Solely designed for the sealing of highly abrasive or viscous media, LATTYseal B 10712 is the forgiving seal that heavy industry requires in terms of endurance and reliability.
Its ability to operate under extreme conditions is unequaled.
Features- Stationary mechanical seal with single protected spring
- Surface treatment possible to increase seal life expectancy
- Available with external screwed spring (REV) Or external pinched spring (REP), internal screwed spring (RIV) or internal pinched spring (RIP)
Specifications
Brand
Pressure
- 0 to 10 bar
- 0 to 1 MPa
- 0 to 145 psi
Temperature
- -20° to 180° C
- -4° to 356° F
Speed
- 10.0 m/s
Approvals & Certifications
- FDA
- CE 1935/2004
Friction Faces
- Nickel-Impregnated Tungsten Carbide (U2)
Composition
- Fluoro Rubber (FPM)
- Pulp and Paper Mills
- Sugar
- Waste Water
