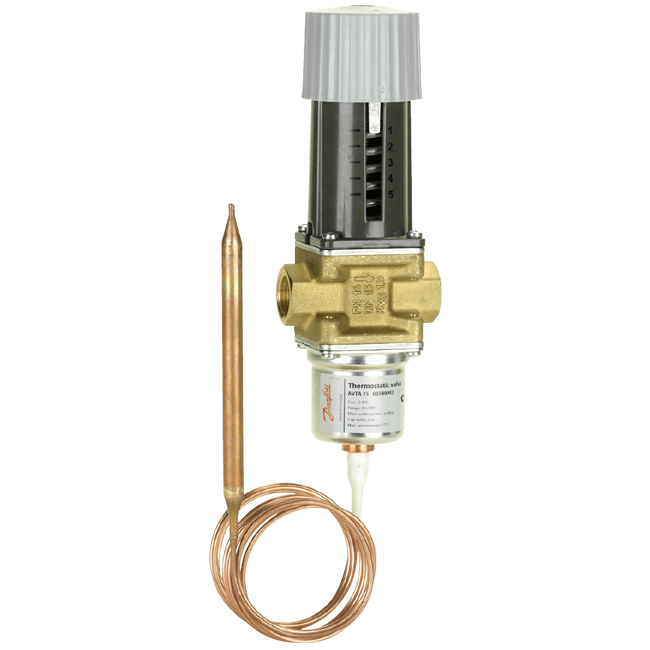

AVTA Thermo. Operated Water Valve
Brand: DanfossThermo. operated water valves are used for proportional regulation of flow quantity, depending on the setting and the sensor temperature.
The Danfoss range of thermo. operated water valves includes a series of products for both refrigeration and heating regulation.
The valves are self-acting, i.e. they operate without the supply of auxiliary energy such as electricity or compressed air.
The required temperature is maintained constant without unnecessary use of cooling water in cooling systems, hot water or steam in heating systems. The operating economy and-efficiency are maximized.
Features- Insensitive to dirt
- Insensitive to water pressure
- Needs no power supply – self acting
- Opens on rising sensor temperature
- Differential pressure: 0 to 145 psi
- Maximum working pressure (MWP): 232 psi
- Maximum test pressure: 365 psi
- Maximum pressure on sensor: 365 psi
- Stainless steel version available
- The valves are pressure-relieved, i.e. the degree of opening is not affected by differential pressure Δp (pressure drop)
- The regulation range is defined for the point at which the valve begins to open
- Cooling media temperature range: -13° to 266° F
- Ethylene glycol as a cooling media up to 40%
Specifications
Brand
Approvals & Certifications
- ISO 228-1
BSP Connection
- G 1” Female
- G 1/2” Female
- G 3/4” Female
- G 3/8” Female
Capillary Length
- 6.56 to 16.4 feet (2 to 5 metres) - Capillary Tube Length
Capillary Material
- Brass
- Nitrile Rubber (NBR)
Cone Material
- Nitrile Rubber (NBR) - Valve Cone
Diaphragm Material
- Rubber-Ethylene-Propylene (EPDM)
Differential Pressure
- psi: 0 to 145 (kPa: 0 to 1,000, bar: 0 to 10)
Enclosure, Body Material
- Forged Brass
- Stainless Steel
Flow Rate
- 0.82 to 3.23 scfm (1.4 to 5.5 m³/hour)
Maximum System Pressure
- psi: 362.6 (kPa: 2,500, bar: 25)
Media
- Ethylene Glycol as a Cooling Media up to 40 %
Mounting
- Bracket
Mounting Position
- Any Orientation
Process Temperature
- -25° to 130° C (-13° to 266° F) - Cooling Media Temperature Range
Seat / Seal Material
- Stainless Steel - Valve Seat
Sensor / Probe Material
- Sensor: Copper
Set Point - Decreasing
- 0° to 90° C (32° to 194° F) - Regulating Range
Set Point - Increasing
- 0° to 90° C (32° to 194° F) - Regulating Range
Spindle Material
- Brass
- Stainless Steel
Temperature Range
- 57° to 130° C (135° to 266° F) - Max.
- Injection moulding machines
- Compressors
- Vacuum pumps
- Dry cleaning machines
- Distillation plants
- Printing machines
- Hydraulic systems
- Roller mills
- Biomass boilers
- Industrial lasers
- Steam sterilizers
- Medical equipment
- Food processing
