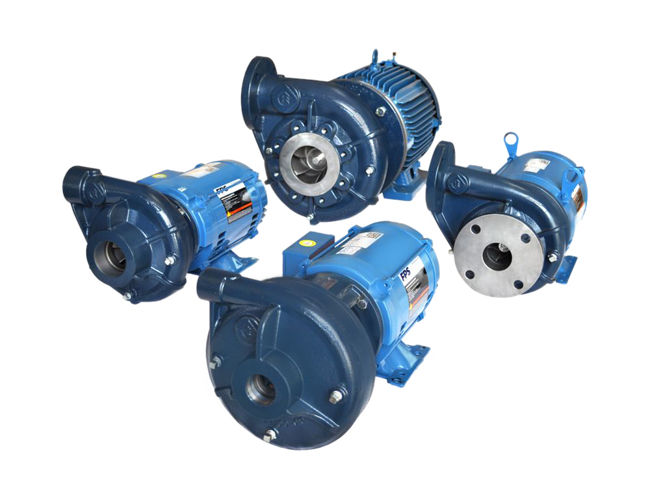

AG Series Close-Coupled Centrifugal Pump
Brand: Franklin Electric Co, Inc.
The AG series close-coupled centrifugal pump is a close-coupled, electric motor driven pump producing flows ranging from 65 through 900 gallon per minute. This close-coupled centrifugal pump features an all-iron construction, enclosed impellers, mechanical shaft seals, replaceable stainless steel shaft sleeves and are all back pull-out design for ease of service.
Standard JM shaft motors are available with either an ODP or TEFC enclosure and either single or three phase standard voltages to fit your site requirements.
Features- One of a 9 pump family covering the most popular hydraulic performance ranges
- Designed for increased efficiency and performance
- Threaded NPT and 125# flanged connection options
- Family has a flow range from 50 – 900 gpm
- NEMA standard JM and JP shaft motors; 1800 and 3600 rpm; ODP and TEFC enclosures available
- Back pull-out design
- Standard carbon / ceramic / Nitrile / 316 stainless steel mechanical seals or packing-box option
- 416 stainless steel shaft sleeves
- ASTM-A48 CL30 cast iron volute and impellers
Specifications
Capacities
- Up to 900 gpm
ƒ Head
- Up to 300 feet
Maximum Working Pressure
- 150 psi
Maximum Temperature
- 212 °F
Voltage
- 230 VAC
- 230/460 VAC
- 575 VAC
- Pressure Boosting
- Water Supply & Treatment
- Wash Down
- Water Recirculation
- Irrigation
