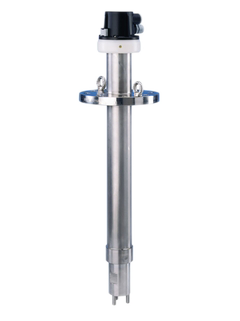

Immersion Assembly Dipfit CPA140
Brand: Endress+Hauser Group Services AGThe Dipfit CPA140 immersion assembly is designed for all demanding applications where aggressive media are involved. With its flange connection, Dipfit is installed safely in the process and offers space for three sensors. Its bayonet lock offers you easy sensor installation even in sticky media or media containing solid particles, thus saving time for maintenance and recalibration.
Dipfit CPA140 is intended to be used in closed tanks in:
- Chemical industry
- Petrochemical industry
- Life sciences
- Power plants and waste incinerating plants
- Extractive metallurgy and metal processing
It is suitable for use with pressures of up to 10 bar (stainless steel) or 6 bar (PVDF).
Features- Simple installation and removal of the electrode holder thanks to bayonet lock
- Flexible connection to the process by means of various flanges (DIN, ANSI, JIS)
- Less condensation due to a Goretex filter
- Reduces installation effort by providing 3 mounting positions for 120 mm sensors plus a cleaning unit
Specifications
Material of Construction
- Immersion Tube, Sensor Holder: PVDF or Stainless Steel 1.4404
- O-rings: EPDM, VITON, Chemraz or Fluoraz
Process Temperature
- Max. 150° C (302° F)
Process Pressure
- Max. 10 bar (Max. 145 psi)
Connection
- Pressurized Flange DN80/PN16, ASME 3" lbs150, JIS 10K80A
Certifications & Approvals
- Material Certification 3.1B EN 10204
- CE
Dimensions
- Immersion Depth: 500 to 2,500 mm (19.7 to 98.4 inch)
- Chemical Industry
- Petrochemical Industry
- Life Sciences
- Power Plants & Waste Incinerating Plants
- Extractive Metallurgy & Metal Processing
