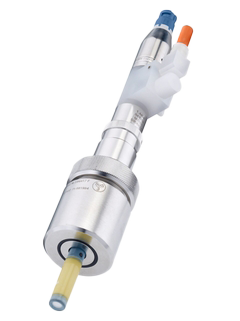

Digital Non-Glass pH Sensor Ceramax CPS341D
Brand: Endress+Hauser Group Services AG
Ceramax CPS341D is the long runner for hygienic applications in food and life sciences industries. The sensor guarantees long-term stability and lowest maintenance wherever it is applied.
Thanks to Memosens digital sensor technology, CPS341D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.
- Food production, also highly pasty media
- Beverage production and filling
- Life sciences:
- Water treatment
- Active ingredient production
- Active ingredient preparation
- Biotechnology
- Long-term stability over many years
- Hygienic design: Suitable for cleaning in place (CIP) and sterilization in place (SIP)
- High mechanical stability due to pH-sensitive enamel on a steel carrier
- Insensitive to soiling thanks to large pH measuring surface
- Maximum process safety through non-contact inductive signal transmission
- Enables predictive maintenance due to storage of sensor and process-specific data
- Reduced operating costs due to minimized process downtime and extended sensor lifetime
Specifications
Measuring Range
- pH -2 to 14
Material of Construction
- pH Sensitive Enamel on A Steel Carrier
Process Temperature
- 0° to 140° C (32° to 280° F)
Process Pressure
- 0 to 7 bar (0 to 101.5 psi) abs
Temperature Sensor
- NTC 30KΩ
Ingress Protection
- IP68
Connection
- Contactless, Inductive, Digital Connection Head with Memosens Technology
Dimensions
- Diameter: 12 mm (0.47 inch)
- Shaft Length: 120 mm (4.70 inch)
- Food Production
- Beverage Production
- Quality Control
- Pharmaceutical Industry
- Biotechnology
