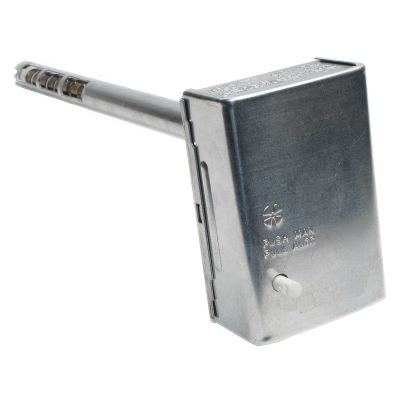

L4064B2228 Fan and Limit Controller - 5" Insert

Brand: Resideo Technologies Inc
Add Product to My Catalog

Controls high limit and fan motors in forced air heating systems.
Features
  • Three Wiring Terminal Options Available for Easy Installation.
  • Push-in Receptacles for Stripped Wire.
  • Female Receptacles for 1/4 Inch Male Flag Connectors.
  • Auxiliary Screw Terminals.
  • Field Adjustable Fan and High Limit Settings.
  • L4064B,W, and R Models Have a Manual Fan Switch that Overrides the Fan Control to Keep the Fan Running Continuously.
  • Tradeline Models with Mounting Adapters for Easy Installation and Strain Relief Bushings to Protect Wiring from Field Abuse.

1 - 2 of 2 Part Numbers
L4064B2228/B
L4064B2228/B
Fan and Limit Controller - 5" Insert
L4064B2228/U
L4064B2228/U
Fan and Limit Controller - 5" Insert
1 - 2 of 2 Part Numbers

Specifications

Brand

Dimensions

  • 4-9/32 in. high x 3 in. wide x 1-19/32 in. deep excluding element
  • 109 mm high x 76 mm wide x 40 mm deep excluding element

Comments

  • Turns fan on and off according to plenum temperature via helical bimetal sensing element. High limit stop set at 200F (93 C). Breakaway Jumper included. Includes manual and automatic fan on/off settings. Replaces L4064A,B,E.

Mounting

  • Surface or universal mounting bracket available (50077438-001/U)

Electrical Ratings

  • Fan (AFL) - 14 A @ 120 Vac: 7 A @ 240 Vac; Fan (ALR) - 84 A @ 120 Vac: 42 A @ 240 Vac; Limit (AFL) - 8 A @ 120 Vac: 4 A @ 240 Vac; Limit (ALR) - 48 A @ 120 Vac: 24 A @ 240 Vac

Approvals, Underwriters Laboratories Inc.

  • Listed File MP466, Guide MBPR

Approvals, Canadian Standards Association

  • Certified: File No. LR1622

Tradeline Value

  • Tradeline

Operating Temperature Range

  • -40 °F to +190 °F
  • -40 °C to +88 °C

Differential Temperature

  • High limit 25 °F
  • High limit 14 °C

Switching Action

  • Fan switch makes and high limit switch breaks on temperature rise.

Element Insertion Length

  • 5 in.
  • 127 mm

Pilot Duty Ratings

  • 0.25 A @ 0.25 to 12 Vdc; 2 A @ 24 Vac

  • Forced Warm Air Heating Systems
