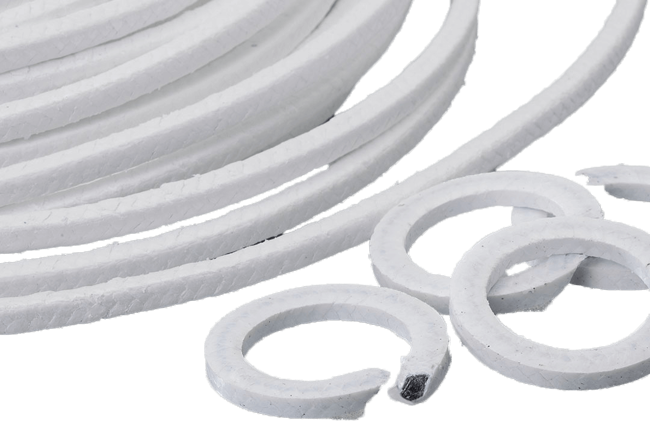

LATTYflon 3265 LM Preformed Braided Packing Rings
Brand: Latty International S.A.Packing consisting of a braided core made from PTFE-impregnated carbon yarns and a sleeve made from braided, impregnated and lubricated PTFE yarns.
Its elastic composite structure ensures sealing efficiency with a low tightening torque, thus allowing reduced power consumption and minimum emissions while greatly improving fluid sealing.
LATTYflon 3265 LM contains a corrosion inhibitor developed from an exclusive process to provide unlimited protection against corrosion of the stem, stuffing box housing and stuffing box over time.
Available in preformed packing rings, on request. Very low friction, valve packing ideal for control valves.
Features- Dedicated to the Specific Requirements of Regulating Valves
- Reduced Operating Effort, Minimum Hysteresis
- The Corrosion Inhibitor (exclusive LATTY process) Durably Protects the Parts of the Fitting
- Ready-to-Use Preformed Rings: Quick Stuffing Box Implementation and Replacement, Reduced Production Downtime
- Reduced Maintenance Costs and Increased Equipment Service Life
- Multi-Purpose: Suitable for a Large Number of Applications
- Made in France
Specifications
Brand
Pressure
- 80 to 300 bar
- 8 to 30 MPa
- 116 to 4351 psi
Temperature
- -100° to 300° C
- -148° to 572° F
Speed
- < 1 m/s
pH
- 0 to 14
Approvals & Certifications
- ISO 15848 -1, Classe BH
- BAM
- TA Luft VDI 2420
Composition
- PTFE
- Control and Regulating Valve Manufacturers
- Chemical Industry
- Petrochemical Industry
- Cryogenic Applications
- Nuclear Power Plants
