Add the DC Plus 600W Power Supply to your store or catalog
Book Your Demo and See How
or create your store
DC Plus 600W Power Supply.png

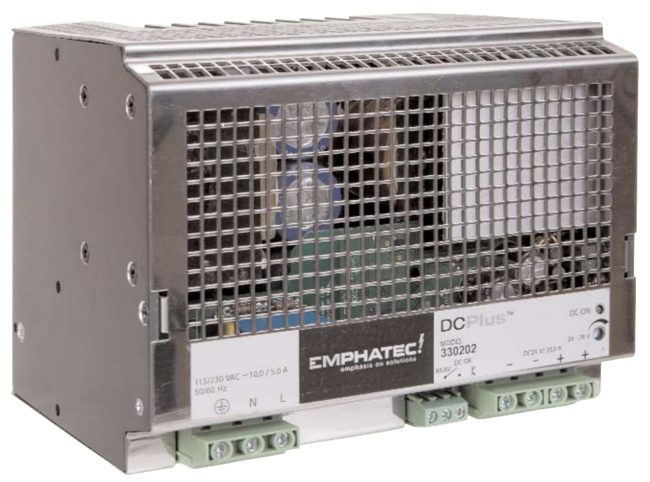

DC Plus 600W Power Supply

Brand: Emphatec
Add Product to My Catalog

The DC Plus 600W power supply offers high power in a very compact size. The 24 Vdc at 25 A output is delivered by a package requiring just 165 mm of DIN rail.

The input is 115/230 Vac (auto-ranging) making it suitable for global applications.
Features
  • Universal input

  • 24 Vdc at 25 A

  • Class 1 Division 2 certified for hazardous location requirements

  • Compact DIN rail mounted

    • Specifications

    Brand

    Applications

    • Cooling: Convection, No Internal Fan
    • Overcurrent Recovery: Automatic Restart

    Approvals & Certifications

    • ATEX Zone 2 EEX N CII C T4U
    • CE
    • CSA (C,US) UL 508, UL 60950-1, CSA 22.2-No. 14, CSA 60950-1-3
    • UL (C,US) UL 60079-15-02, CSA 60079-15-02, Class I, Div. 2, Groups A, B, C, D

    Circuit Protection

    • Output Overvoltage Protection: 35 Vdc

    Current

    • De-Rating: 20 A at 60° C (140° F)
    • Inrush Current (115 Vac): < 25 A
    • Inrush Current (230 Vac): < 30 A

    Electrical Connectors

    • 28 to 14 AWG (0.08 to 2.5 mm²)
    • Power: 26 to 10 AWG (0.5 to 4 mm²)

    Electrical Rating

    • Fault Relay: 1 Form A, Normally Closed, 1 A at 30 Vdc, Max.

    Frequency

    • Input: 47 to 63 Hz

    Indication

    • Bi-Color LED: Green (OK), Red (Fault)

    Input

    • 85-264 Vac

    Mounting

    • DIN Rail Mounting

    Operating Temperature

    • -25° to 40° C (-13° to 104° F)

    Output

    • Current: 25 A at 24 Vdc
    • Output Voltage: 24-28 Vdc

    Documentation

    Data Sheets
